Product Feature

Cabin Lift

  • Space saving – gain more standing space inside existing shafts than ever before
  • As small as 1 sqm
  • Machine roomless and no pit needed
  • Can work with single phase electricity
  • Can be installed in just 10 – 14 days
  • Available with both swing doors and automatic saloon doors
  • Tinted glass doors as standard
  • Up to 0.25 m/s
  • Anti-slip slate flooring from Forbo

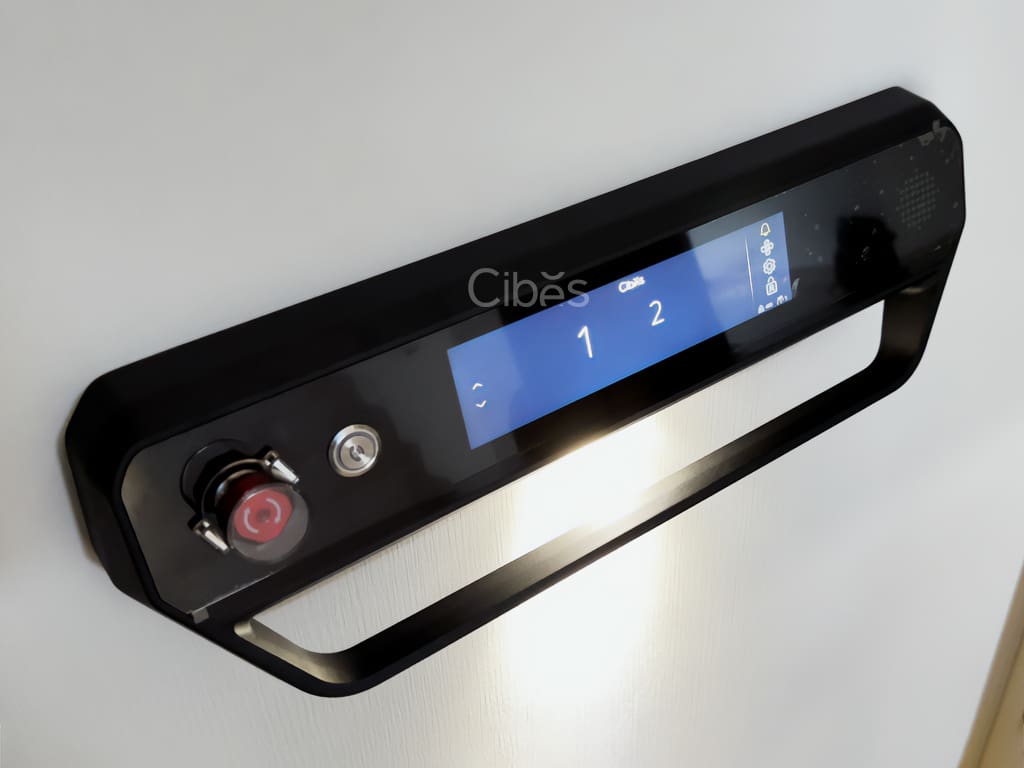

  • Full Touchscreen LCD, Touch call button
  • Music, integrated fan, password lock and more!

Technical Specification

Specifications and model details

  • Installation location: Indoor/Outdoor
  • Load capacity: 400kg
  • Maximum number of stops: 6
  • Maximum speed (m/s): 0.15 - 0.25 m/វិ
  • Travel height: 20m
  • Min head room: 2500mm
  • Pit depth: 0mm/100mm
  • Machine room:Integrated (MRL)

Popular Sizes

Dimension Cabin size (mm) Cut out size (mm)
1 710x815 1060x960
2 910x1015 1260x1160
3 1010x1215 1360x1360
4 1110x1315 1460x1460
5 1110x1415 1460x1560
BASILICA LIGHTS
NEBULA
NEON JAZZ
ARTIC ICE
ORIGAMI
FOREST PINES
Evening Agate
Inca
Long Spring
Imperial Black
Cobalt Blue
Euler
Dragon Sea
Iona
Nova Cloud
Pharaoh
Blacken Legno Partial Crown
Smoke Strand Straight
Black Walnut
Jet Sequoia
Travertine Silver
Walnut Fresco
Titan Shale
Peat
Loam Shale
Colbalt Grey

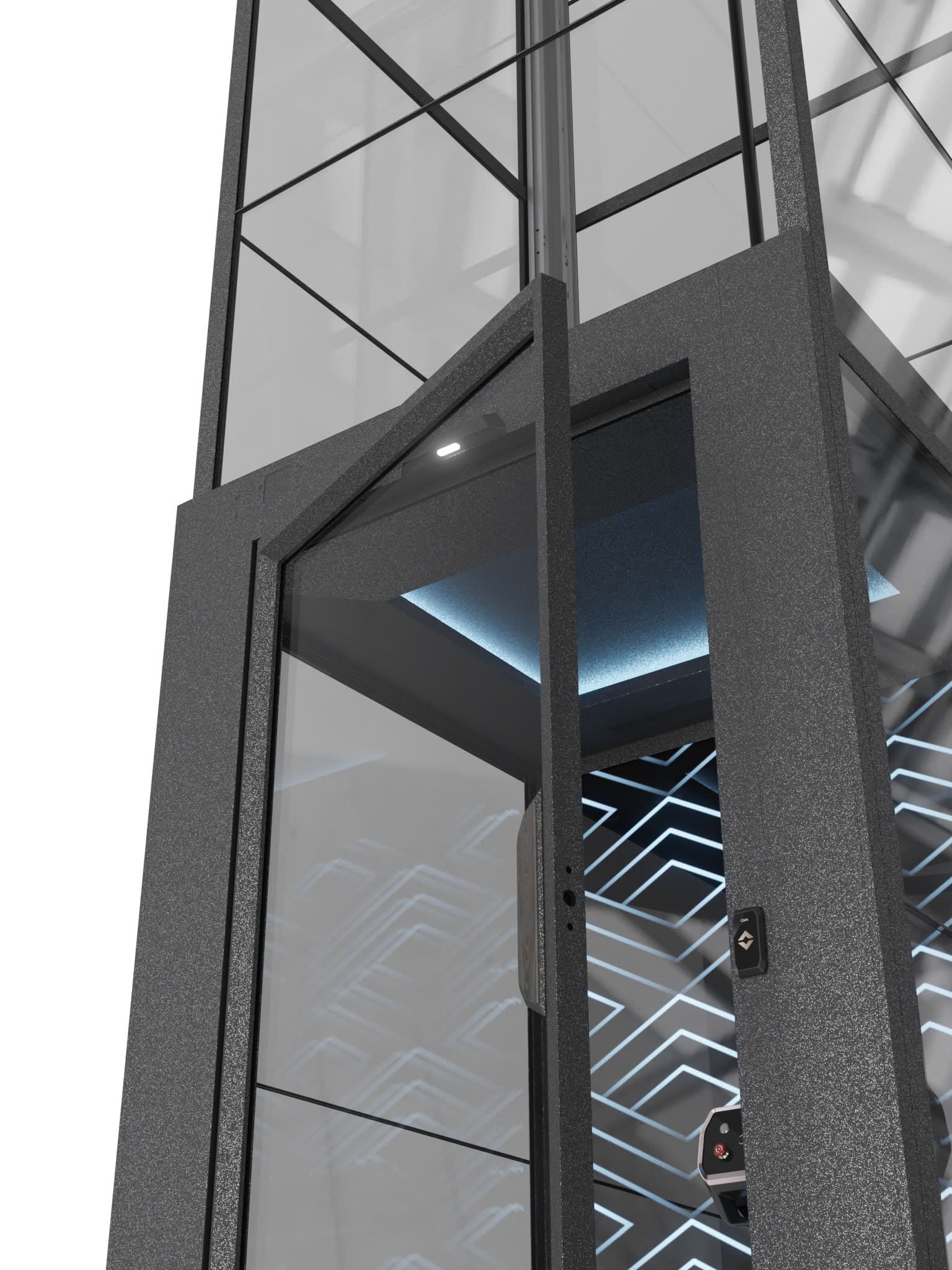

Swing Door

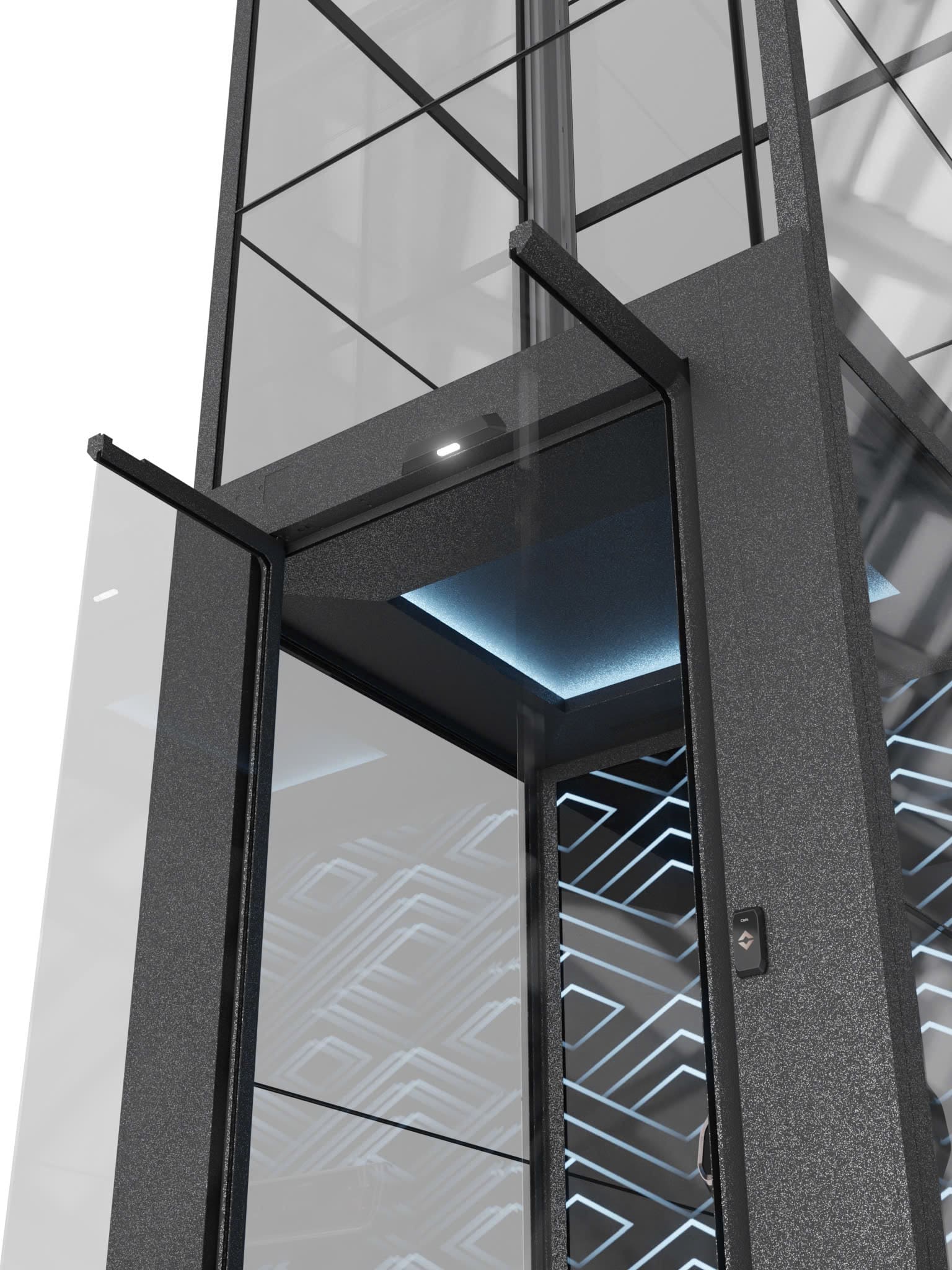

Saloon Door
Quartz 2
Quartz 1
January 4
February 6
February 5
