- Space saving – gain more standing space inside existing shafts than ever before
- As small as 1 sqm
- Machine roomless and no pit needed
- Can work with single phase electricity
- Can be installed in just 10 – 14 days

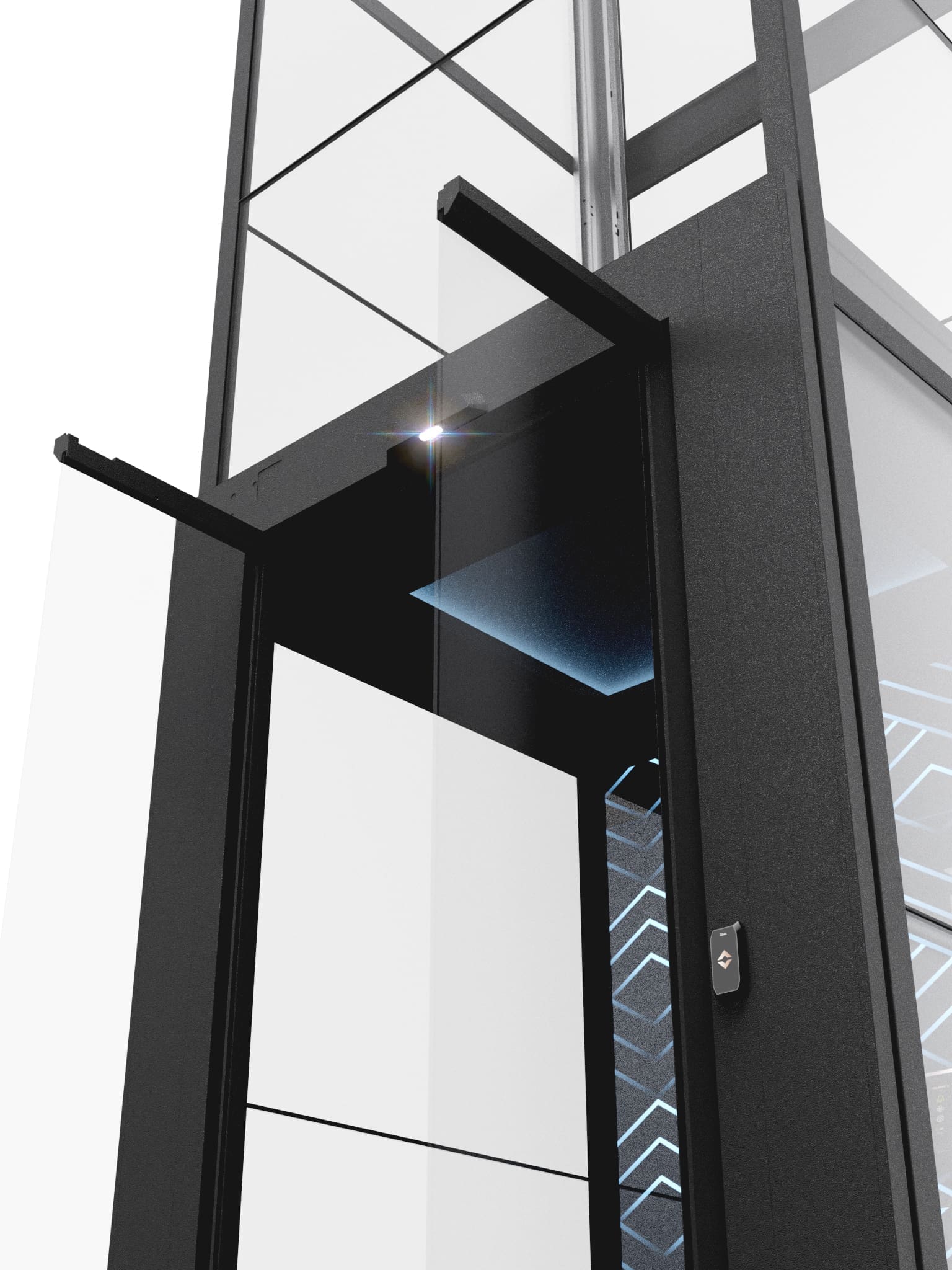

- Available with both swing doors and automatic saloon doors
- Up to 0.25 m/s
- Anti-slip slate flooring from Forbo

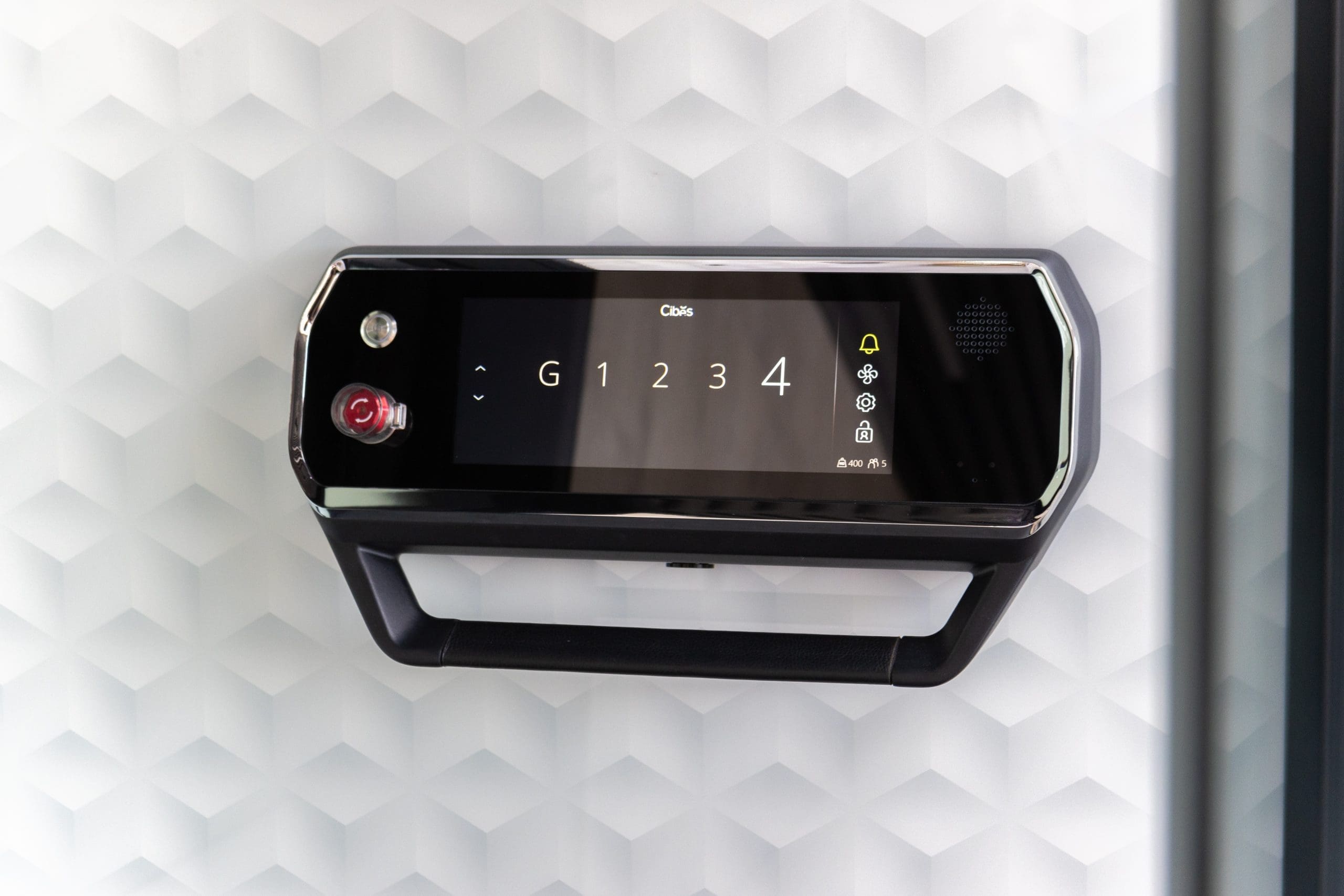

- Full Touchscreen LCD, Touch call button
- Music, integrated fan, password lock and more!
Installation location: Indoor/Outdoor
Load capacity: 350kg/ (2-4 people) and 450kg/ (5-7 people)
Maximum number of stops: 6
Maximum speed (m/s): 0.15 - 0.25 m/s
Travel height: 20m
Min head room: 2500mm
Pit depth: 0mm/100mm
Machine room:Integrated (MRL)
Popular Sizes
| Dimension | Cabin size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 710x815 | 1060x960 |
| 2 | 910x1015 | 1260x1160 |
| 3 | 1010x1215 | 1360x1360 |
| 4 | 1110x1315 | 1460x1460 |
| 5 | 1110x1415 | 1460x1560 |

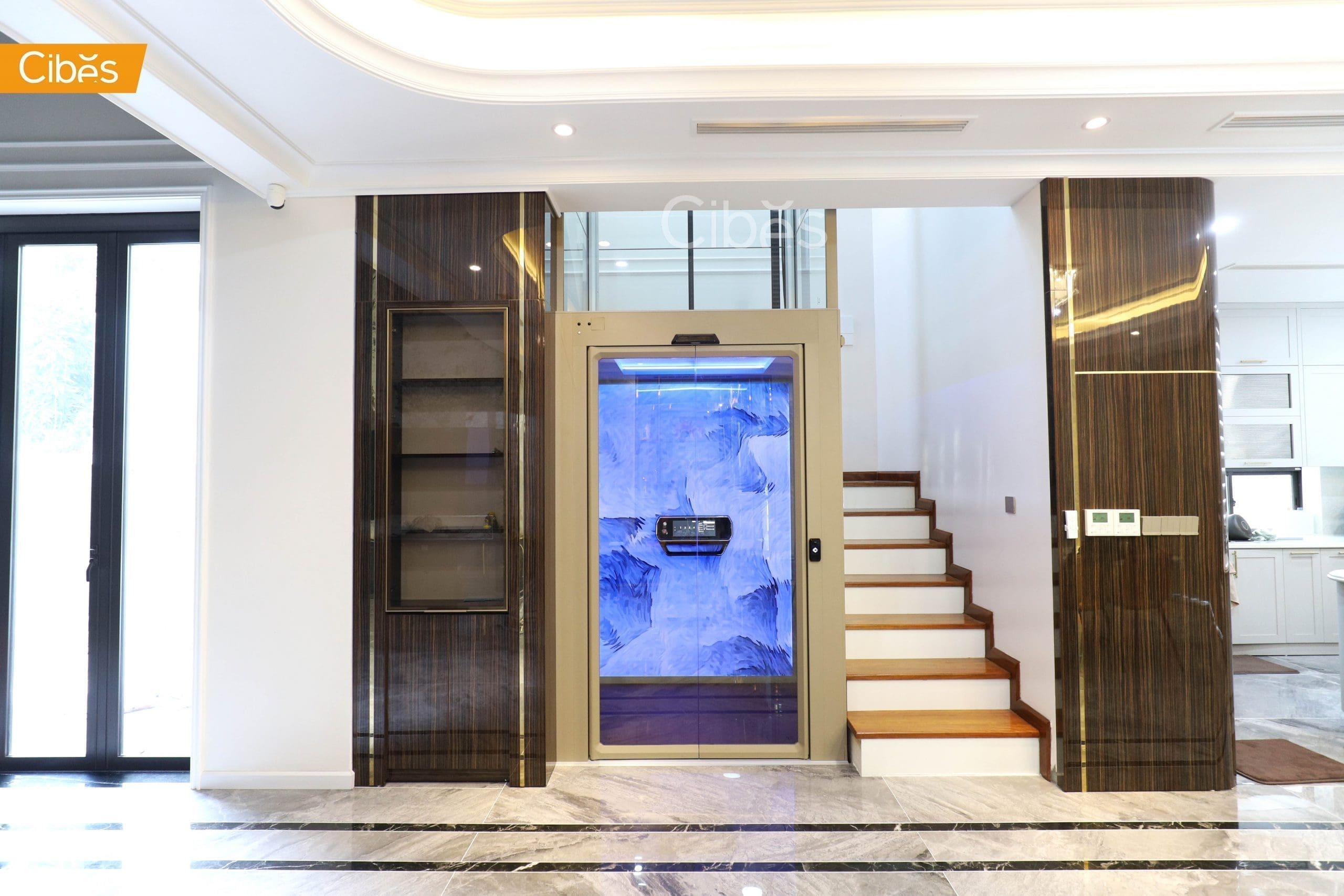

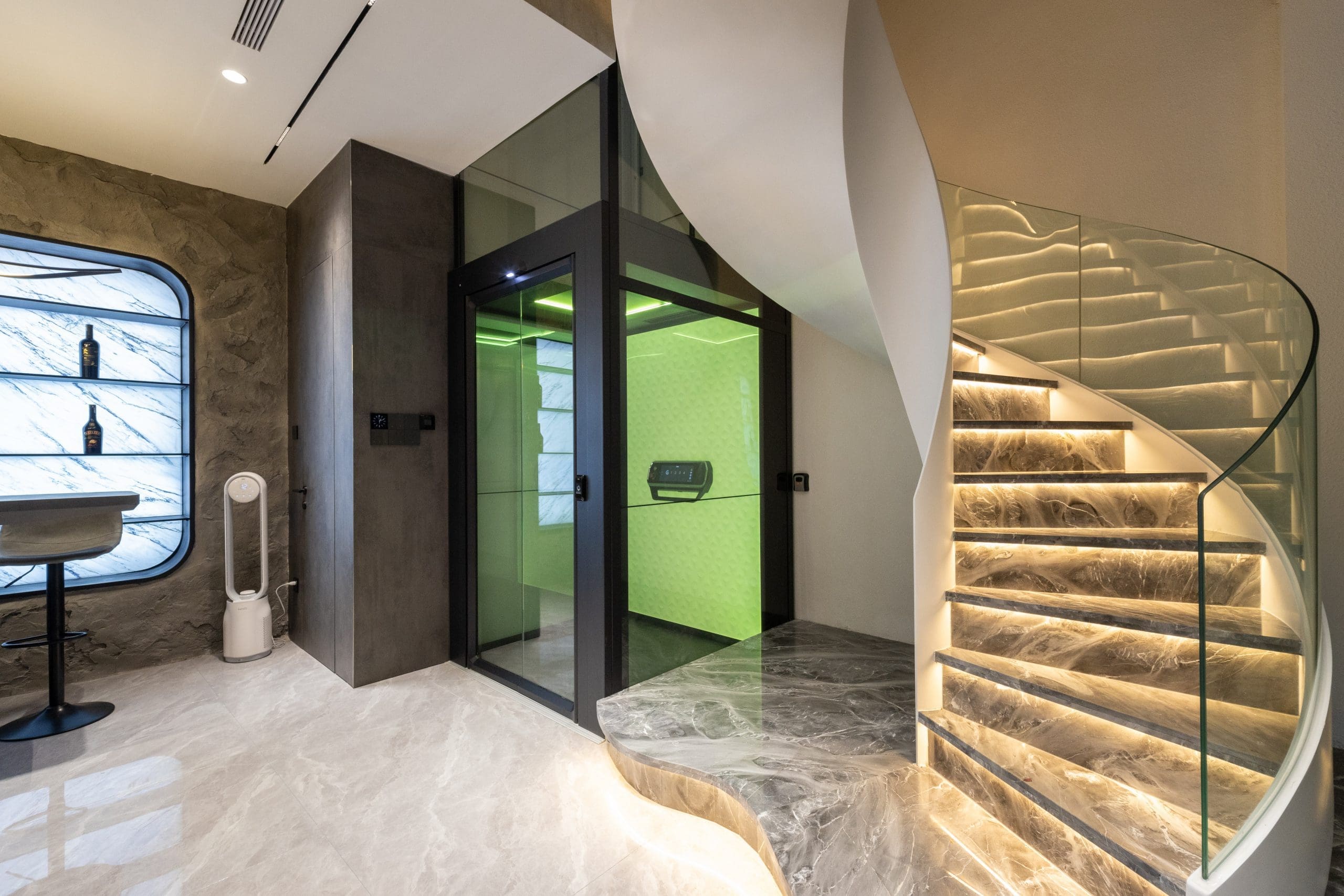

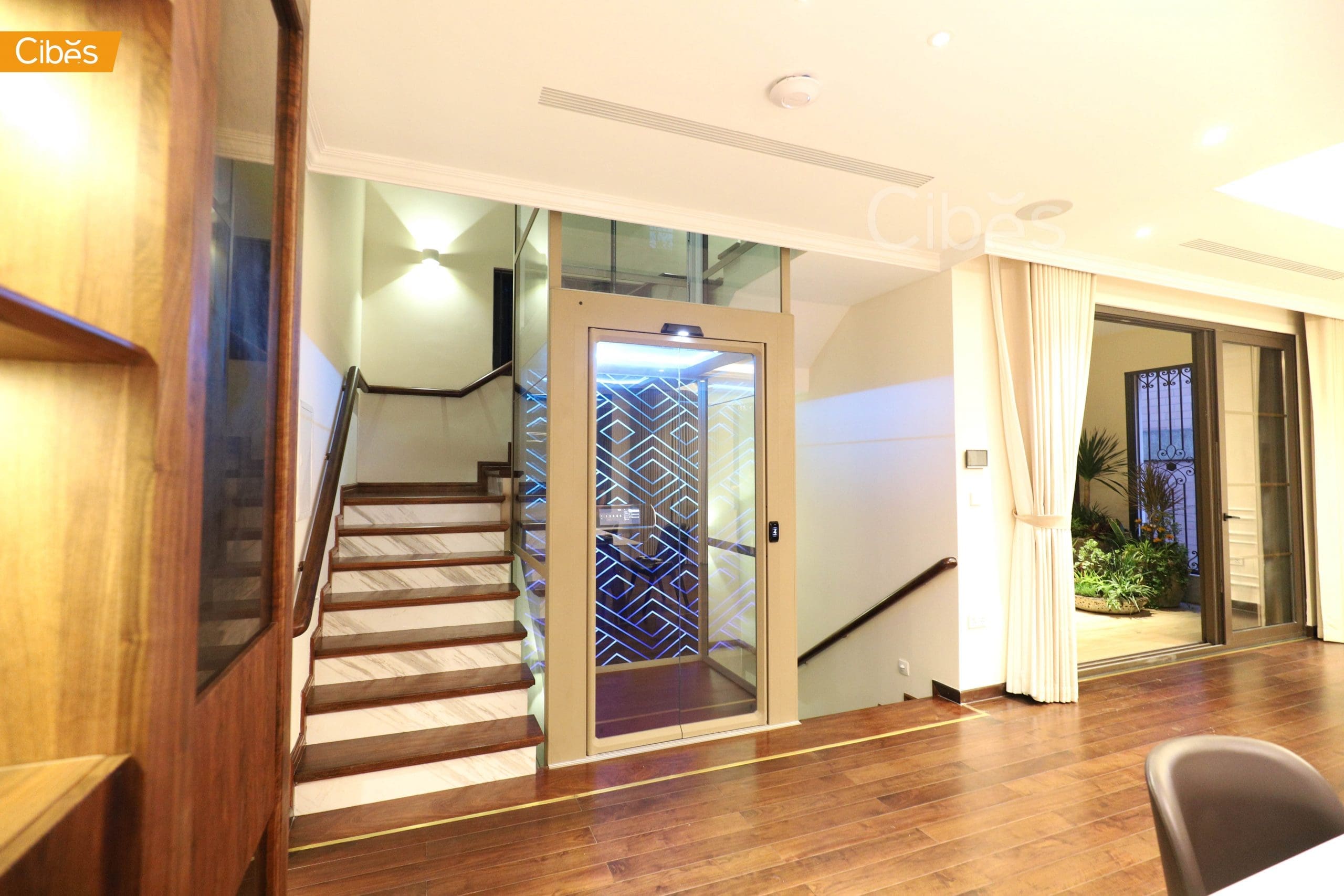

Check these real V90 projects!
