Space saving – the smallest size is less than 1 meter square70% of the footprint is passenger space.Machine roomless and no pit neededCan work with single phase electricity
Can be installed in just 7-10 daysA Cibes Voyager Comfort platform lift with standard doors requires a headroom of only 2300 mmThe EcoSilent drive system makes lift operation 45% more energy-efficient and is virtually soundless
Comply with European Safety Standard Machinery Directive 2006/42/EC and also the local standards More than 200 different lift colors for you to choose
Installation location: Indoor/Outdoor
Load capacity: 300kg/ (2-4 people) and 400 - 500kg/ (5-7 people)
Maximum number of stops: 6
Maximum speed (m/s): 0.15m/s
Travel height: 20m
Min headroom: 2300mm
Pit depth: 70mm - 0mm and install straight on the floor
Drive system: Screw and nut
Directives and standards: MD 2006/42/EC, EN 81-41
Popular Sizes
| Dimension | Platform size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 600x830 | 1020x980 |
| 2 | 900x930 | 1320x1080 |
| 3 | 800x1217 | 1220x1380 |
| 4 | 1000x1367 | 1420x1530 |
| 5 | 1100x1597 | 1520x1760 |

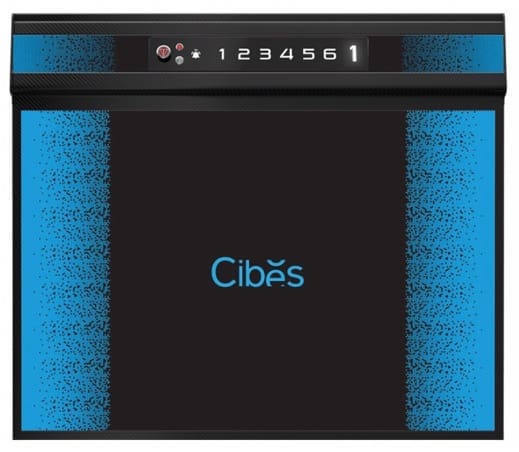

Awakening
Faraday
Super gold
Roman Gold
Oriental Pale Brown
Oriental Oyster White
Oriental Grey Beige
White
Black
Copper
Clacial Slate Grey
Multiple Combinations
Openings on 3 Sides
All Doors on Same Side
Half-Gate Door on Top

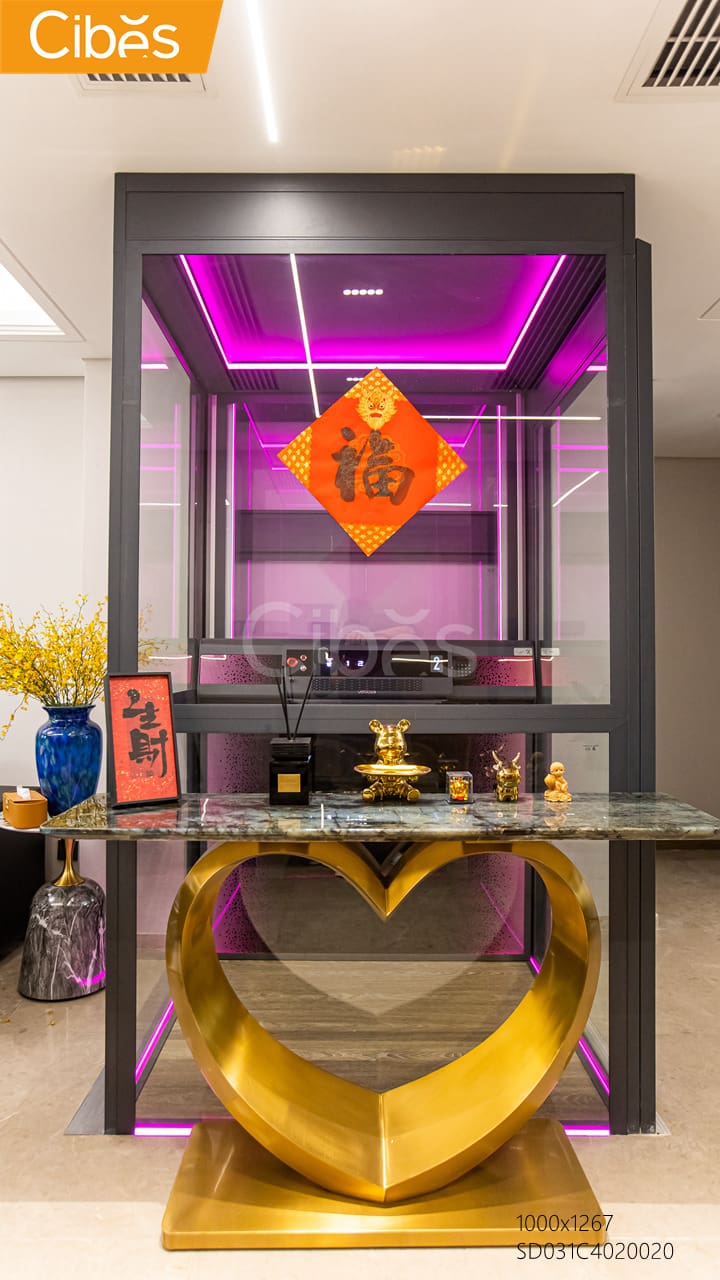

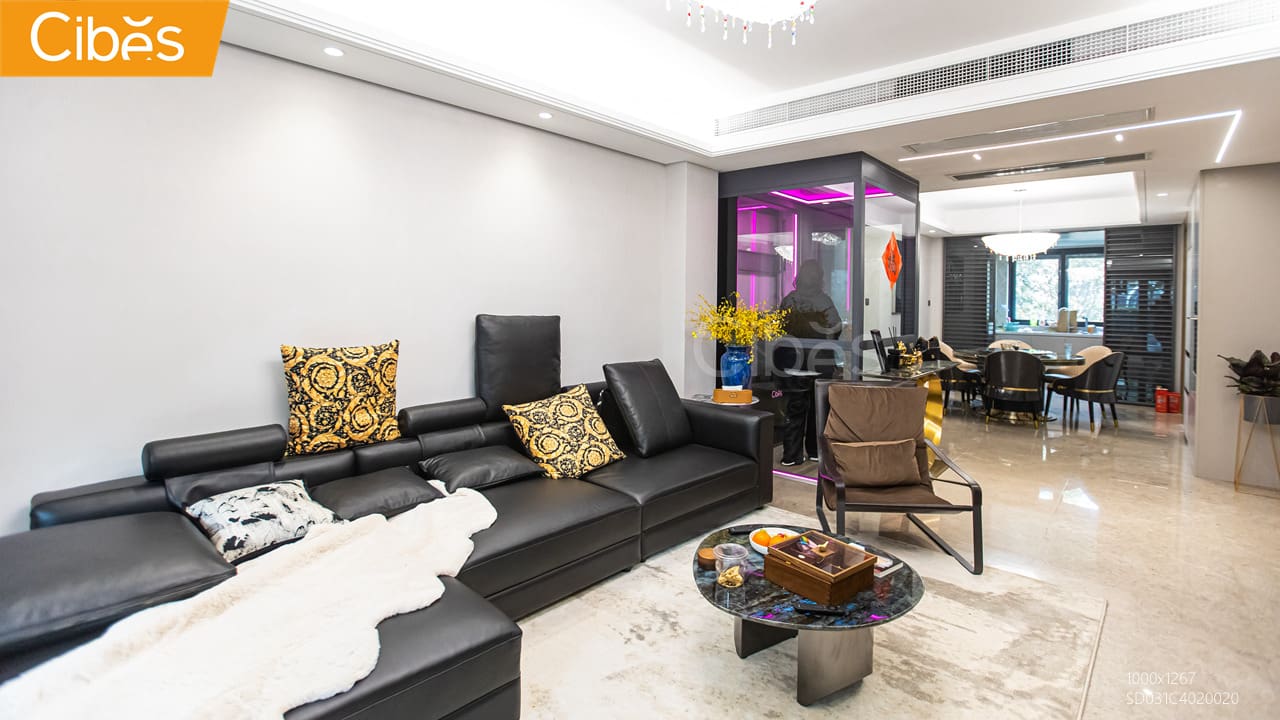

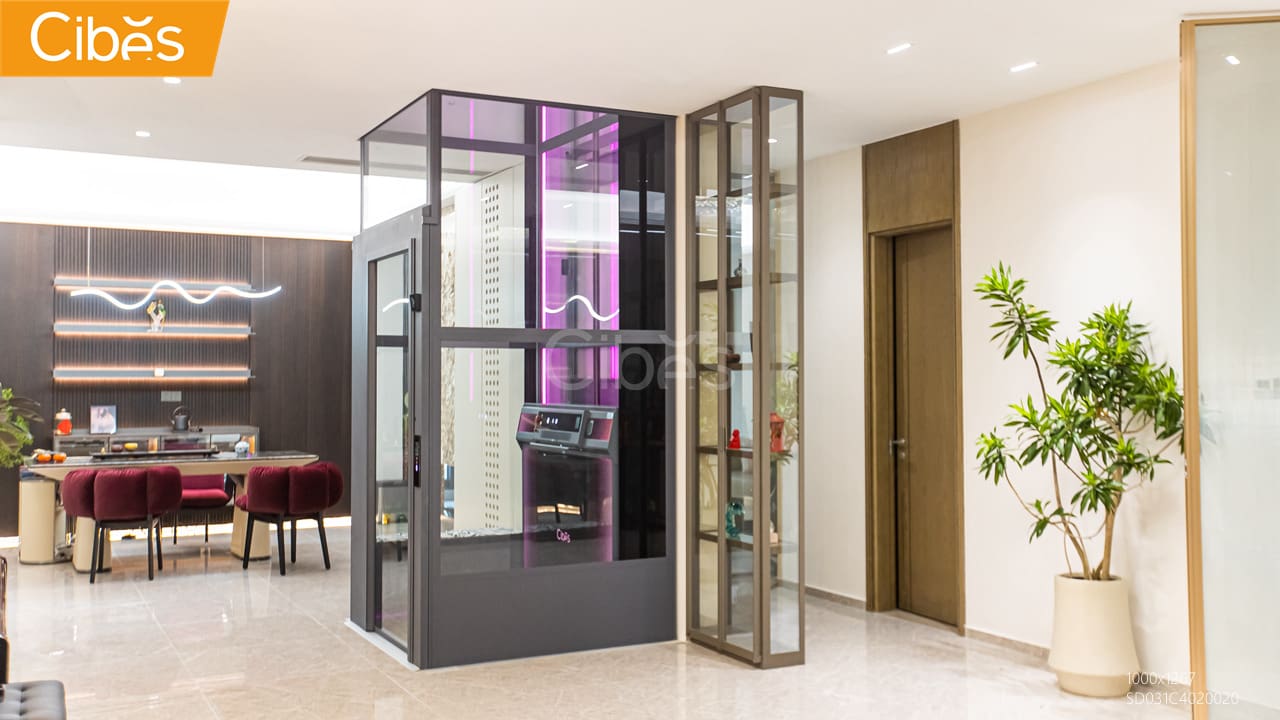

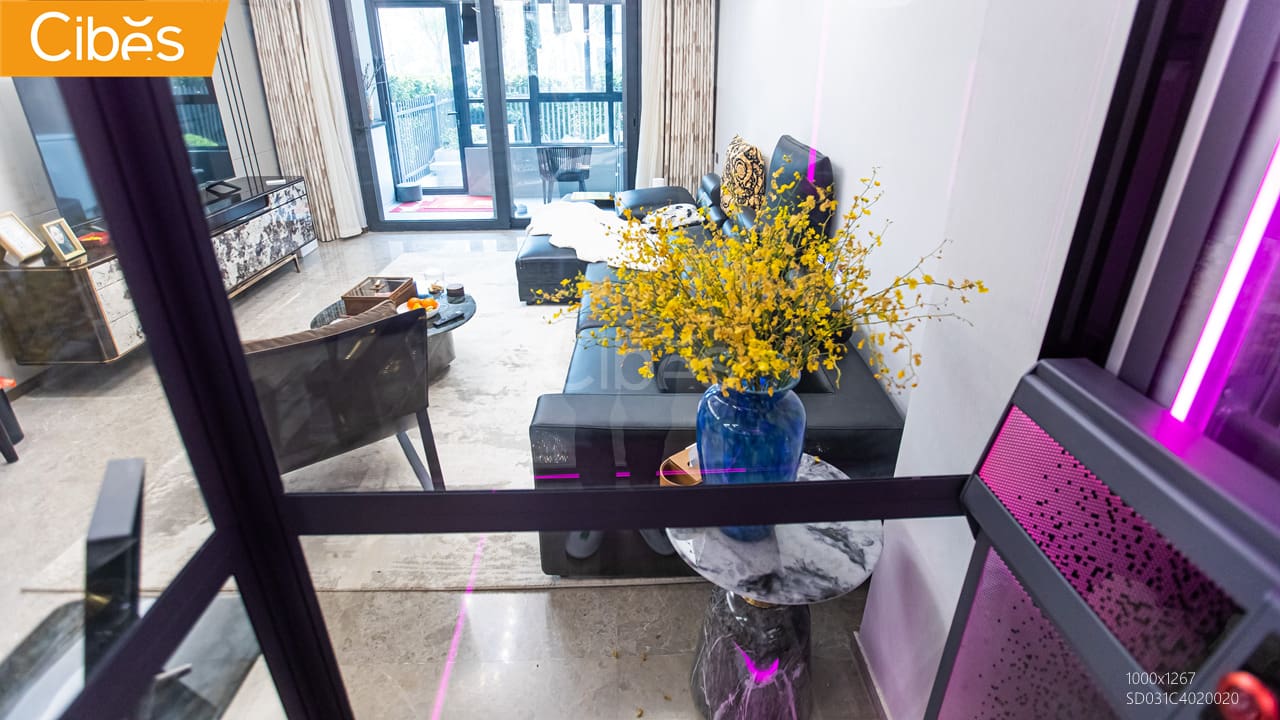

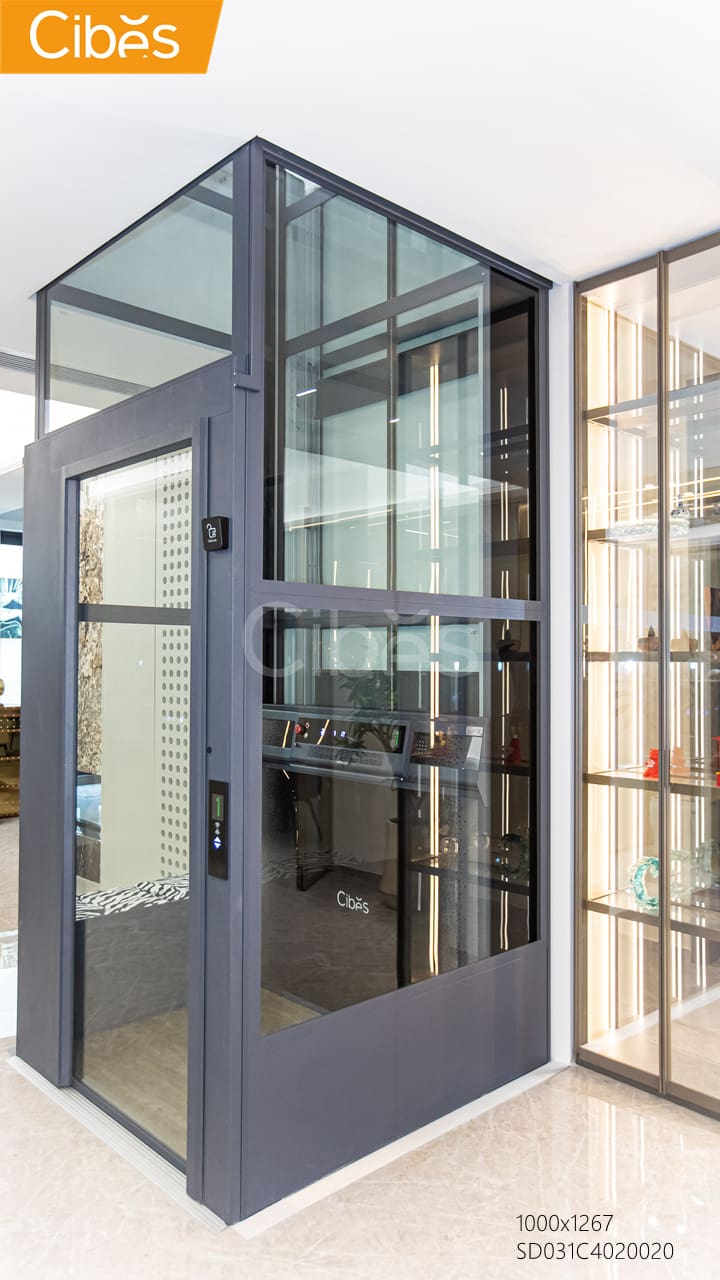

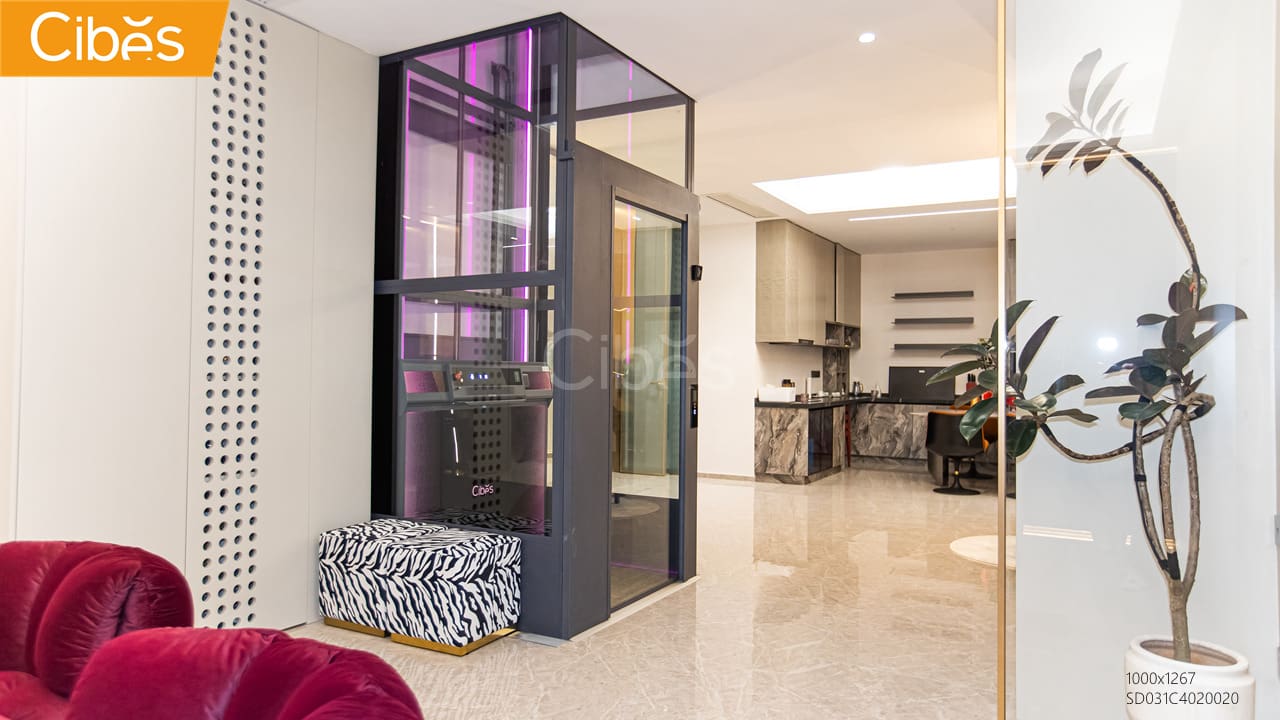

Check these real Voyager Comfort projects!
