Space saving – the smallest size is less than 1 meter square70% of the footprint is passenger space.Machine roomless and no pit neededDeluxe and unique design with 25 different patterns
Can work with single phase electricity
Can be installed in just 7-10 daysA Cibes Voyager V80 platform lift with standard doors requires a headroom of only 2300 mmThe EcoSilent drive system makes lift operation 45% more energy-efficient and is virtually soundless
Comply with European Safety Standard Machinery Directive 2006/42/EC and also the local standards More than 200 different lift colors for you to choose
Installation location: Indoor/Outdoor
Load capacity: 300kg/ (2-4 people) and 400 - 500kg/ (5-7 people)
Maximum number of stops: 6
Maximum speed (m/s): 0.15m/s
Travel height: 20m
Min headroom: 2300mm

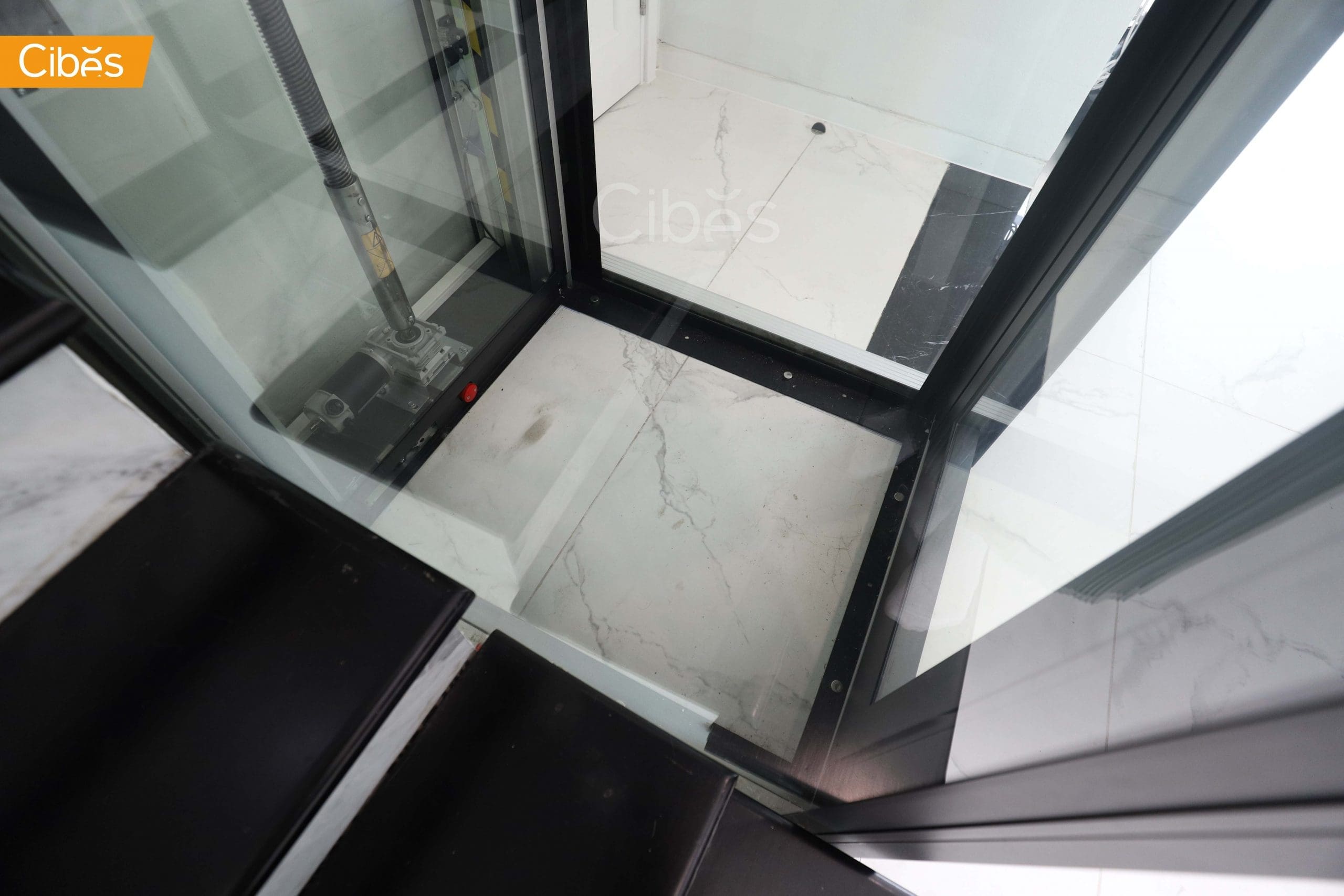

Pit depth: 70mm - 0mm and install straight on the floor
Drive system: Screw and nut
Directives and standards: MD 2006/42/EC, EN 81-41
Popular Sizes
| Dimension | Platform size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 600x830 | 1020x980 |
| 2 | 900x930 | 1320x1080 |
| 3 | 800x1217 | 1220x1380 |
| 4 | 1000x1367 | 1420x1530 |
| 5 | 1100x1597 | 1520x1760 |
Dragon Sea
Long Spring
Pavona Feathers
Seven Islands
Euler

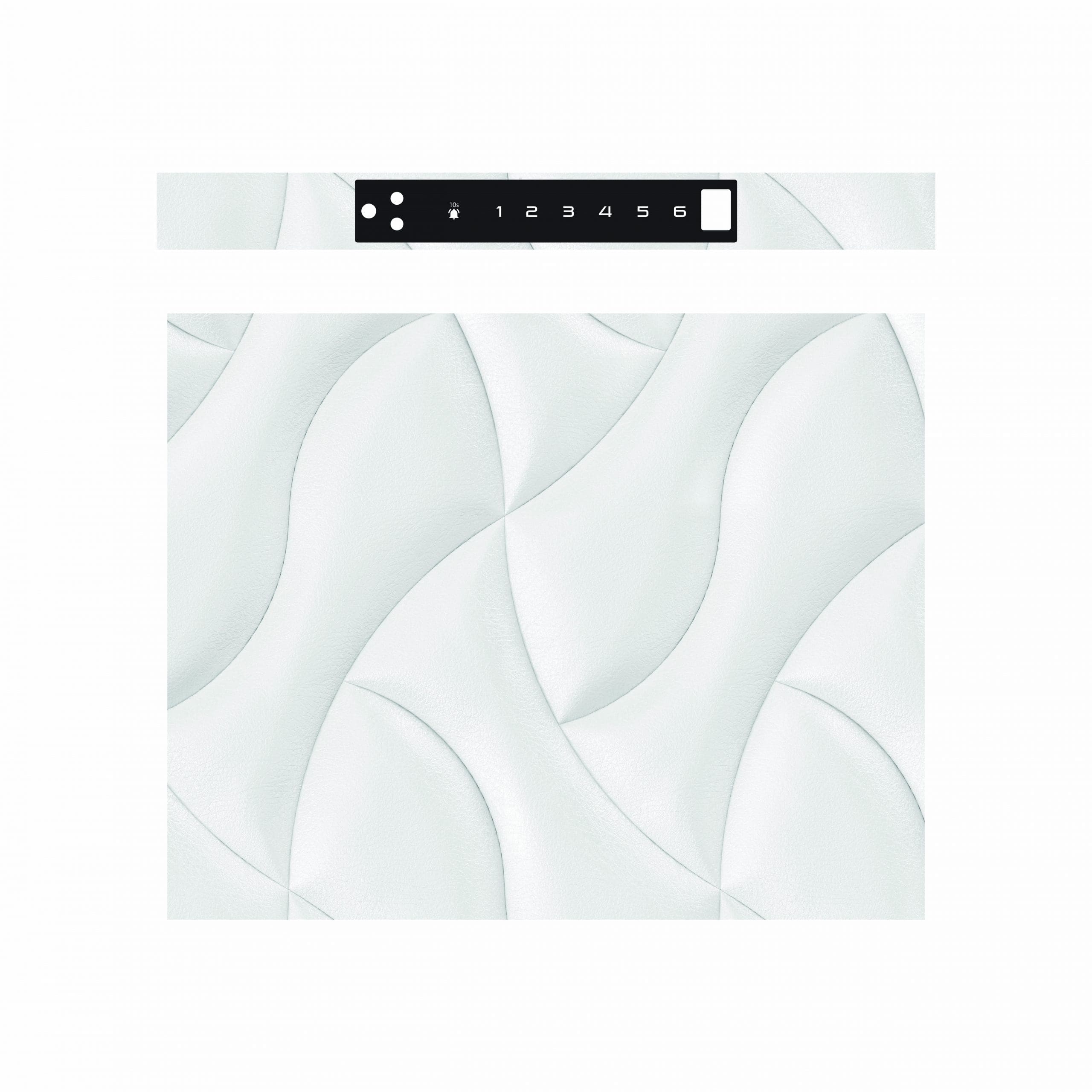

Inca

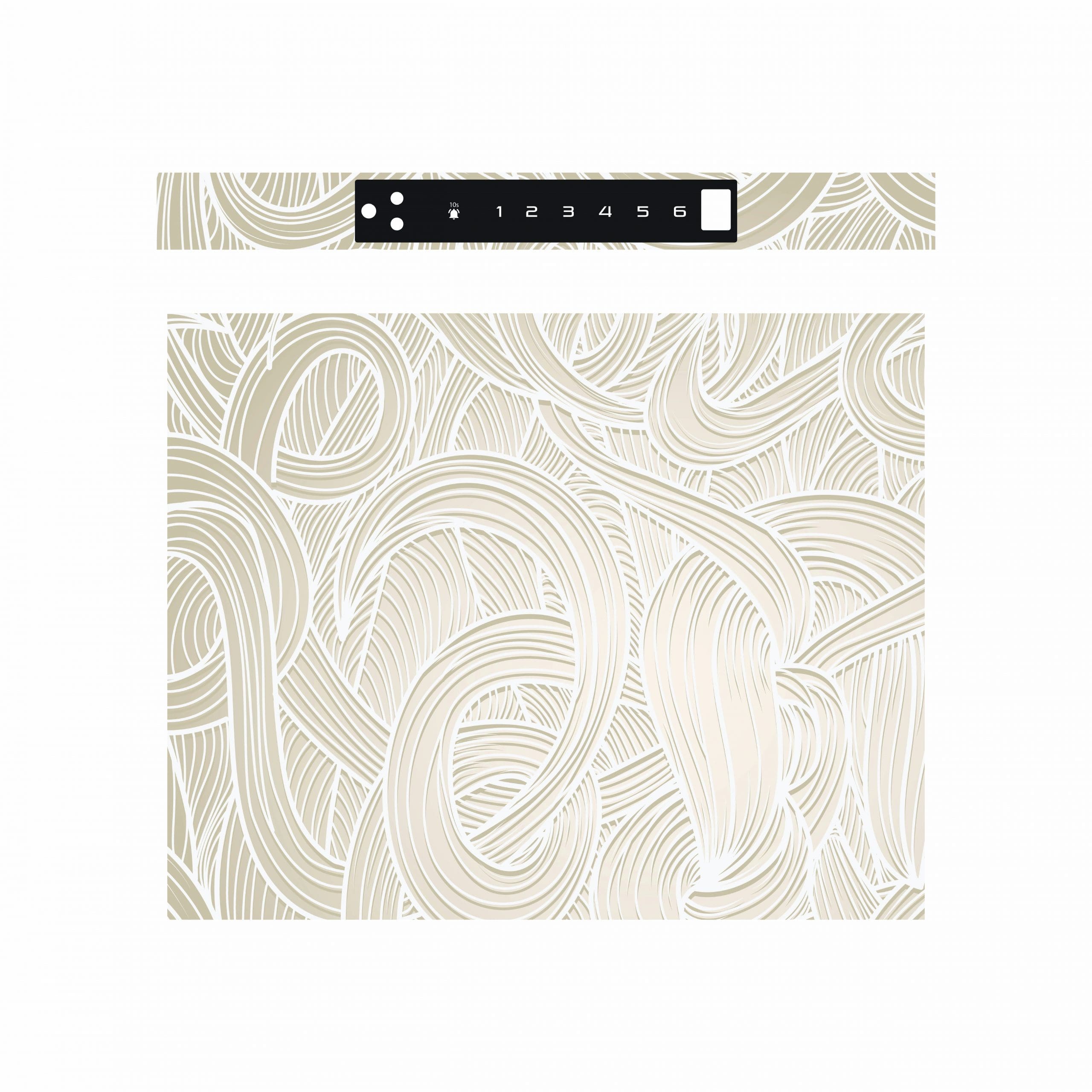

Iona
New Orleans
Pharaoh
Verona

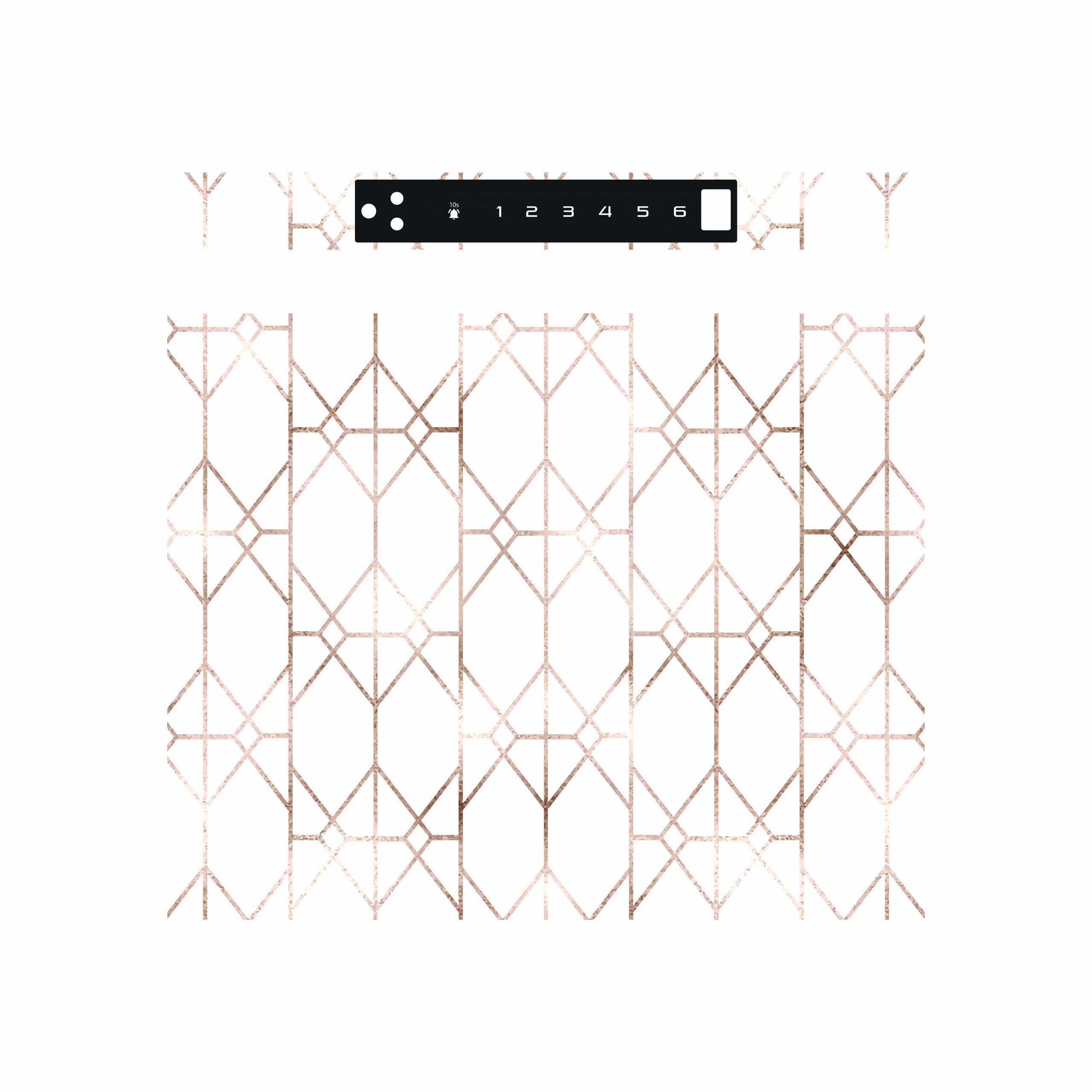

Yerevan
Basilica Marble
Cinnabar Rose
Clay Parfait
Cobalt Blue

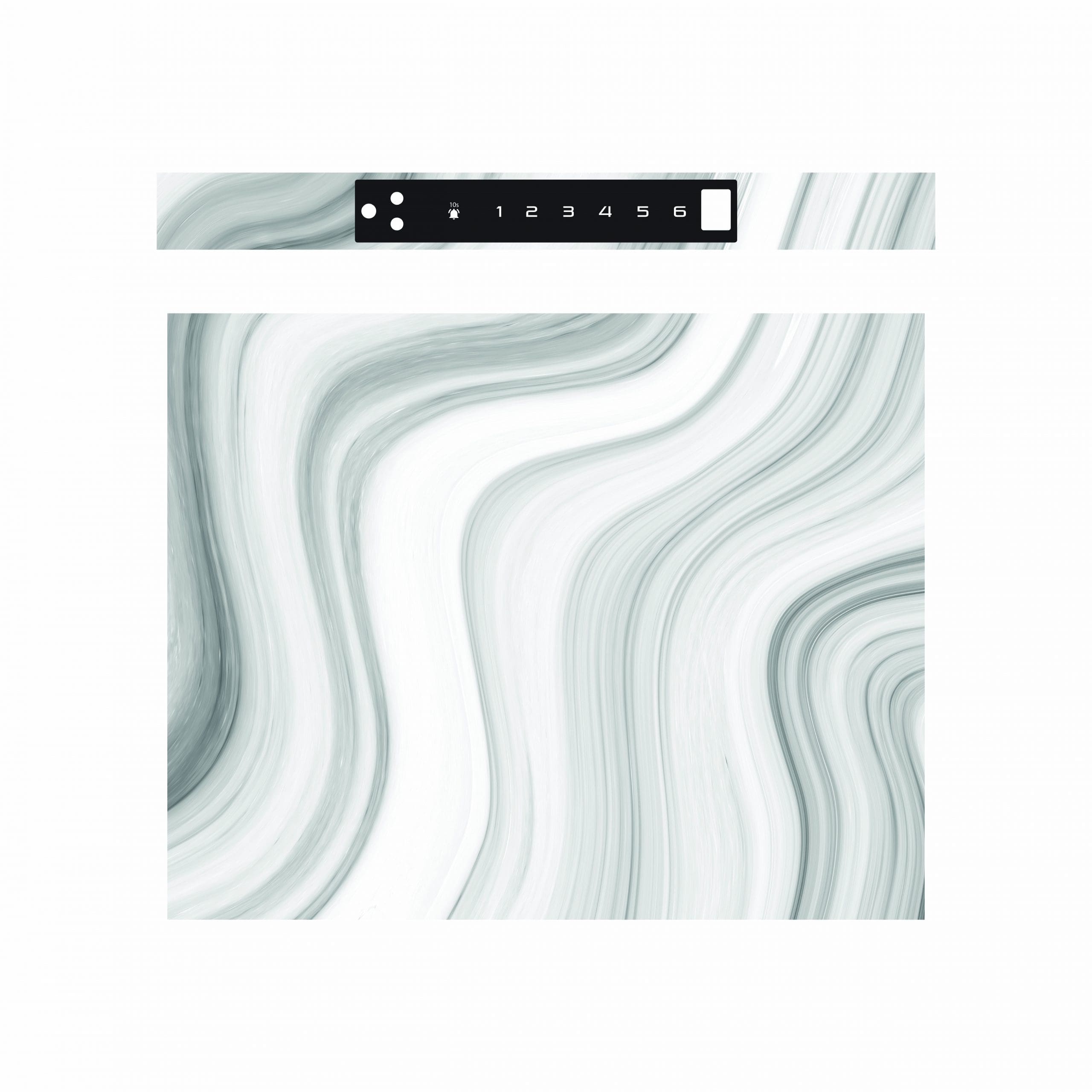

Evening Agate
Golden Topaz
Imperial Black
Nova Clouds
Sandstone Canyon

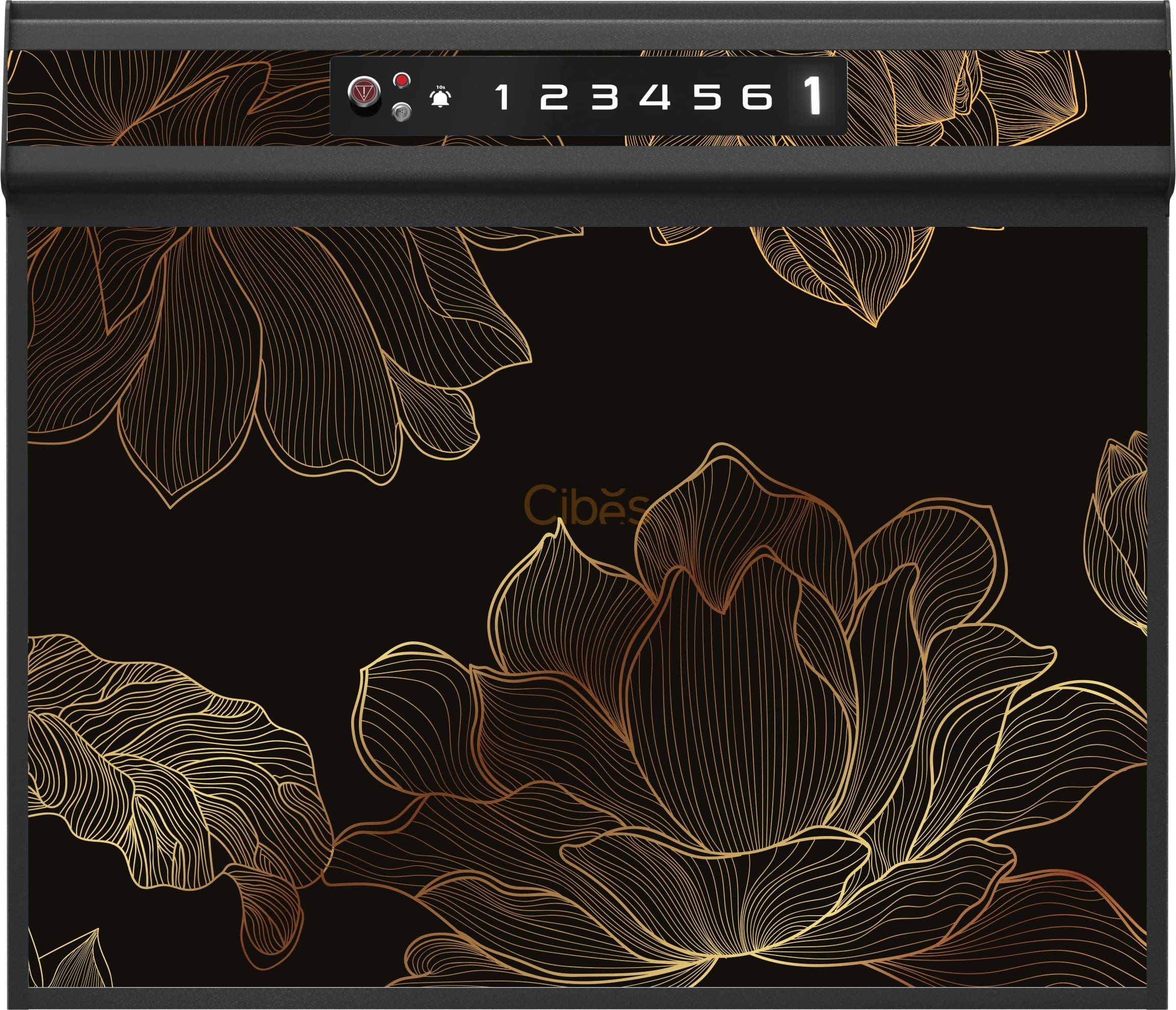

Sunrise Bloom

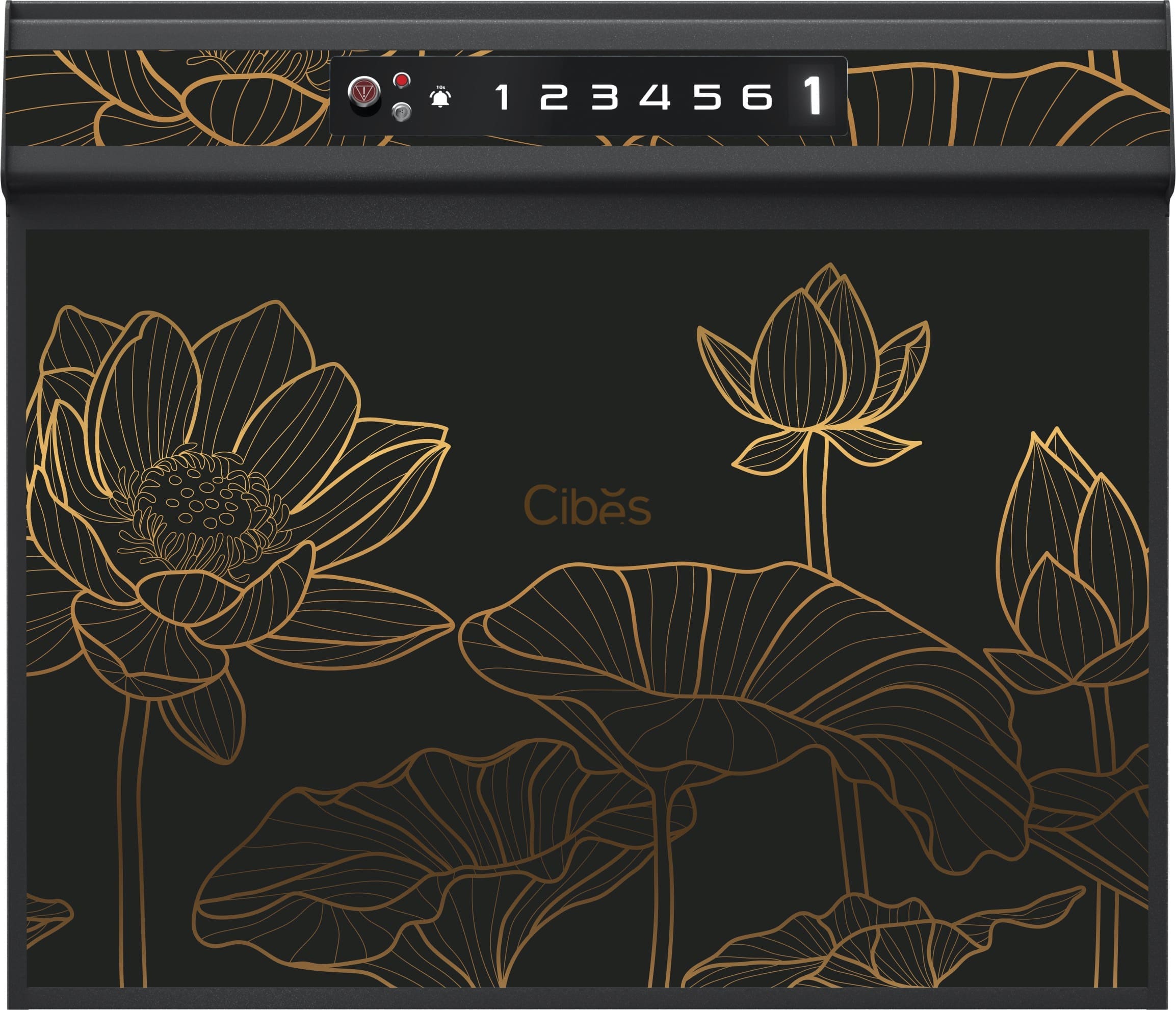

Golden Lotus

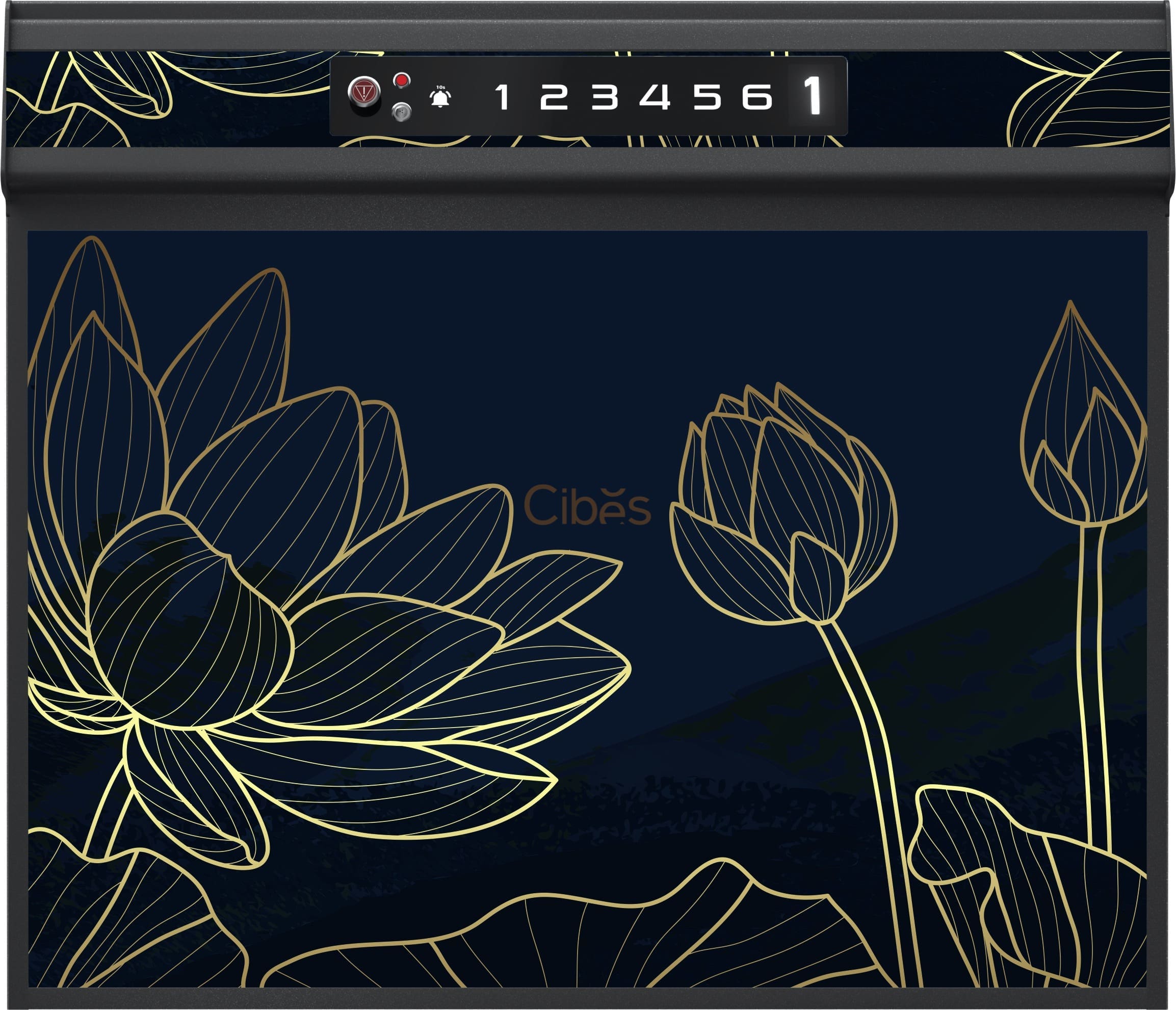

Midnight Charm

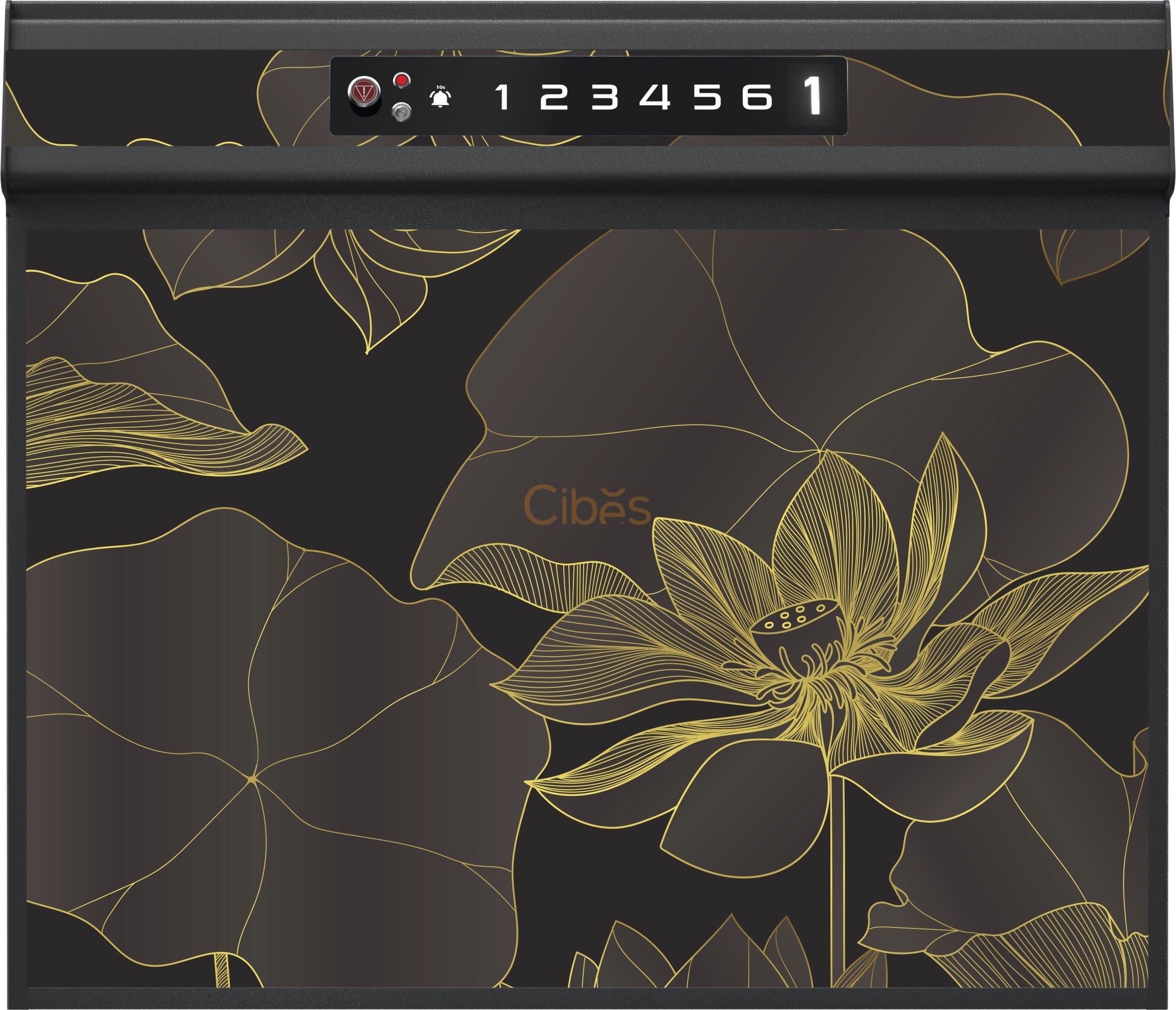

Pure Petal
Clacial Slate Grey
Super gold
Roman Gold
Oriental Pale Brown
Oriental Oyster White
Oriental Grey Beige
White
Black
Copper
Multiple Combinations
Openings on 3 Sides
All Doors on Same Side
Half-Gate Door on Top
