Space saving – the smallest size is less than 1 meter square -
70% of the footprint is passenger space. -
Machine roomless and no pit needed -
Elegant and simple design
-
Can work with single phase electricity
-
Can be installed in just 7-10 days -
A Cibes Voyager platform lift with standard doors requires a headroom of only 2300 mm -
The EcoSilent drive system makes lift operation 45% more energy-efficient and is virtually soundless
-
Comply with European Safety Standard Machinery Directive 2006/42/EC and also the local standards More than 200 different lift colors for you to choose
-
Installation location: Indoor/Outdoor
-
Load capacity: 300kg/ (2-4 people) and 400 - 500kg/ (5-7 people)
-
Maximum number of stops: 6
-
Maximum speed (m/s): 0.15m/s
-
Travel height: 20m
-
Min headroom: 2300mm
-
Pit depth: 70mm - 0mm and install straight on the floor
-
Drive system: Screw and nut
-
Directives and standards: MD 2006/42/EC, EN 81-41

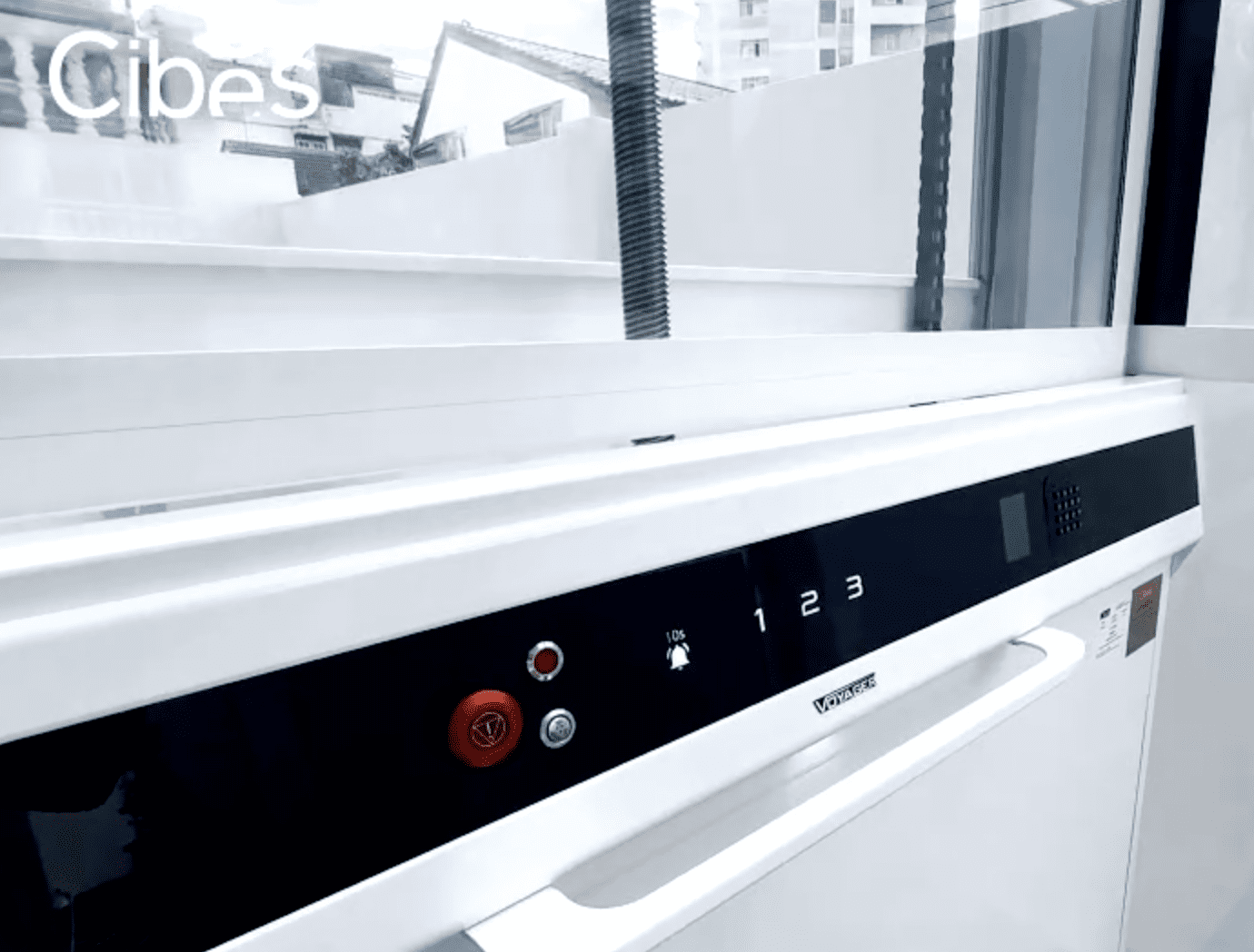

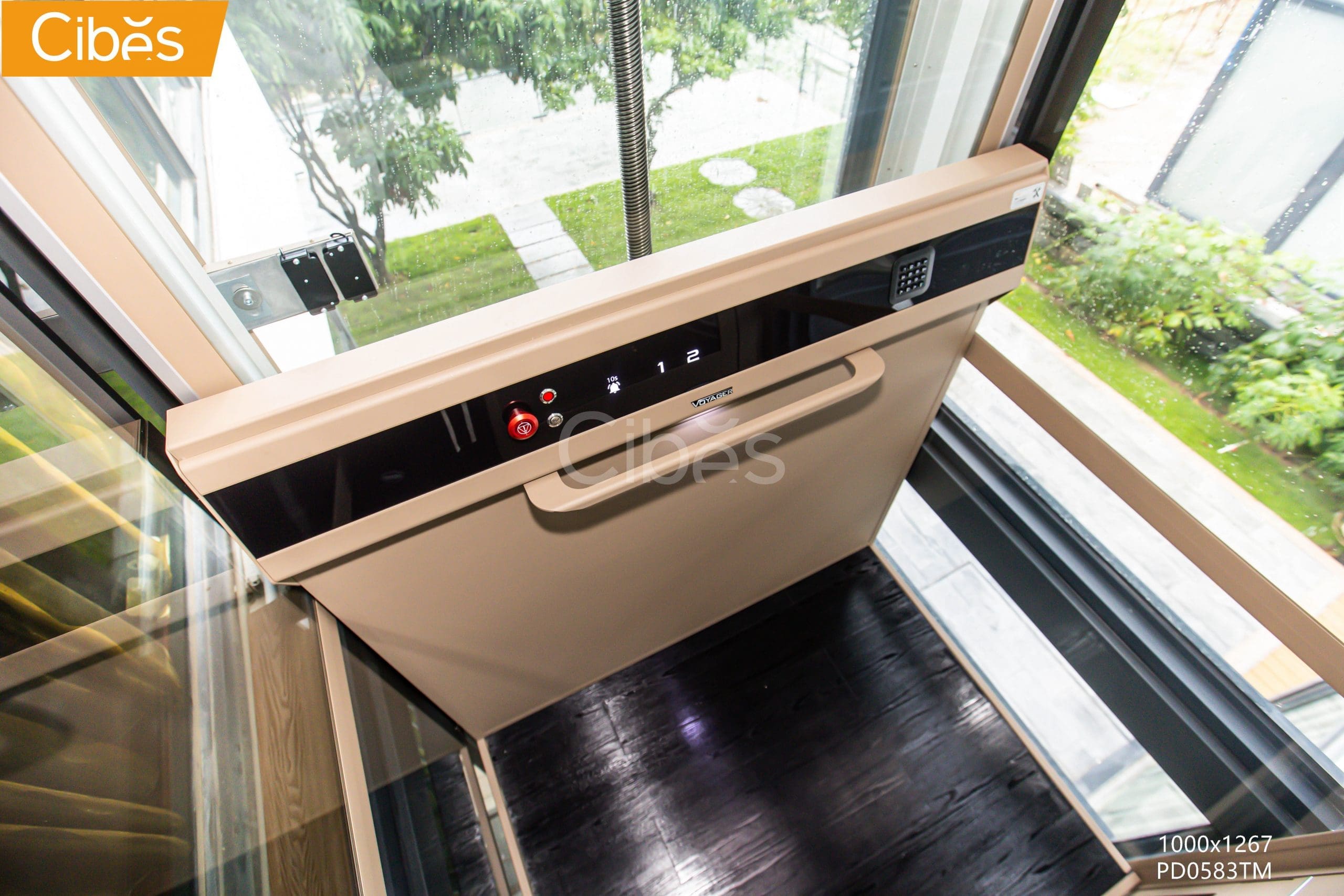

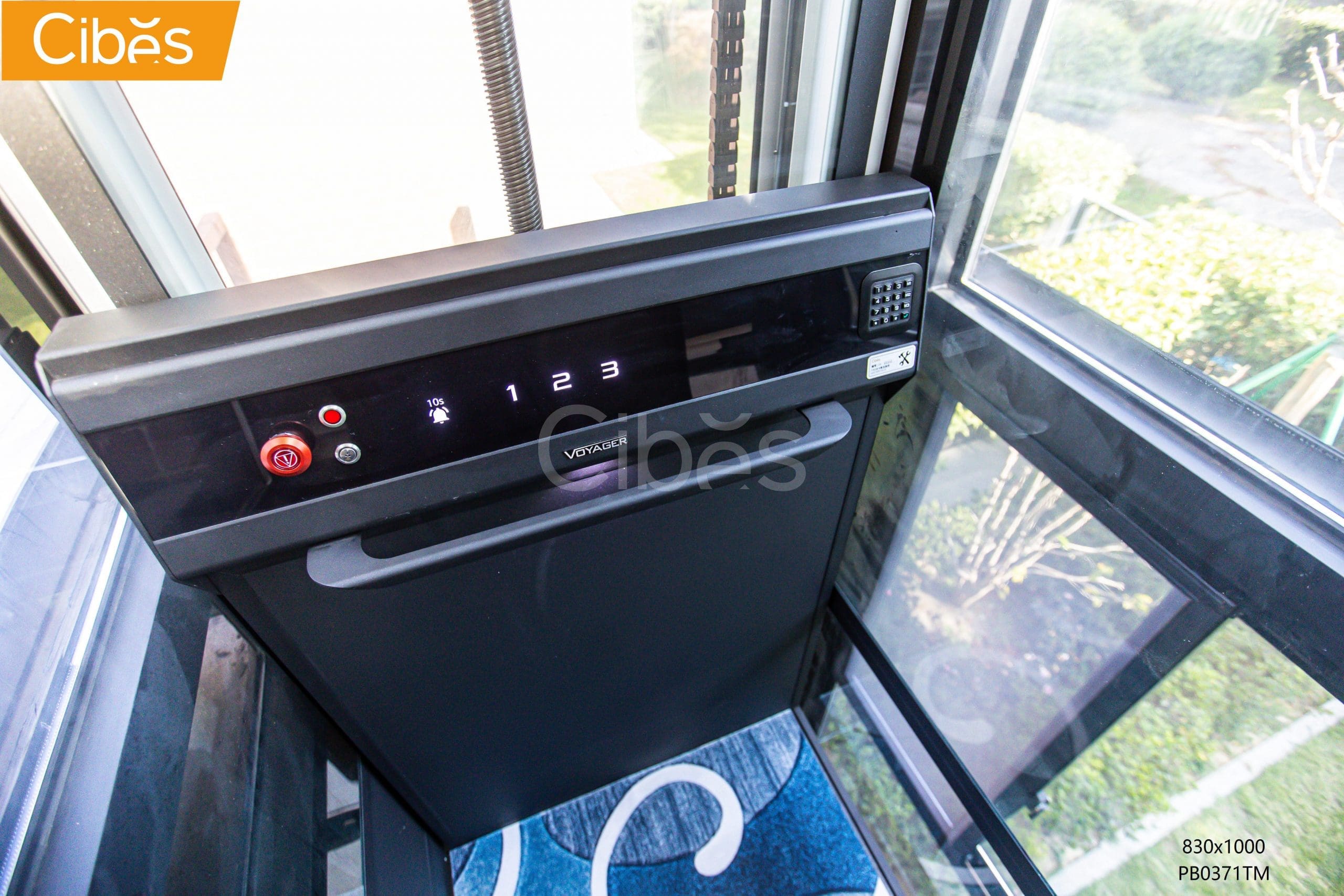

Voyager Touchscreen
Discover the Voyager touchscreen, simple and easy to use while providing your home with a sleek and modern aesthetic.
- Built-in Dialpad phone
- Touchscreen control for floor access and alarm button
- Built-in Overload light indicator
- Emergency Light-up Stop Button
- Whole Length display

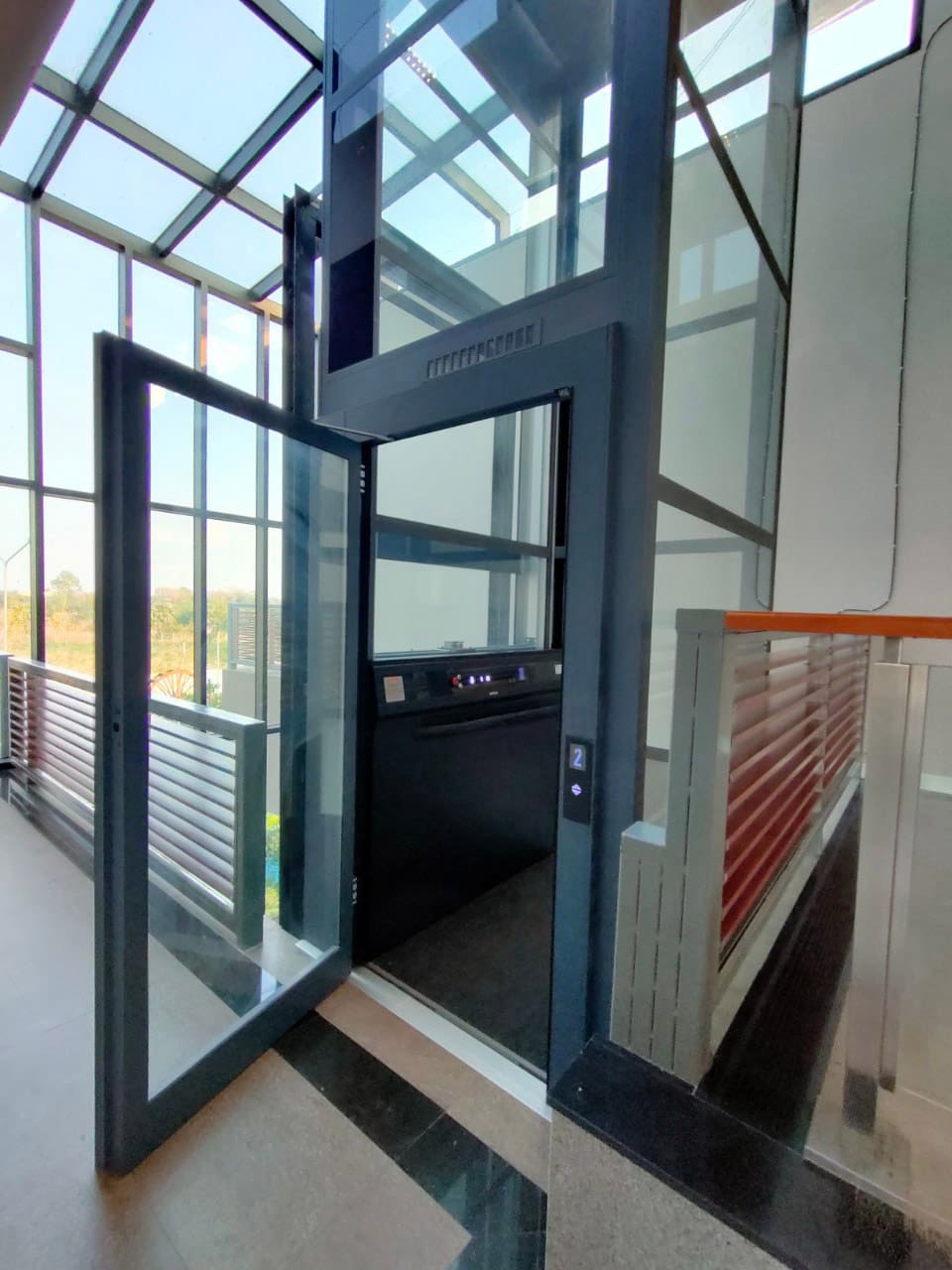

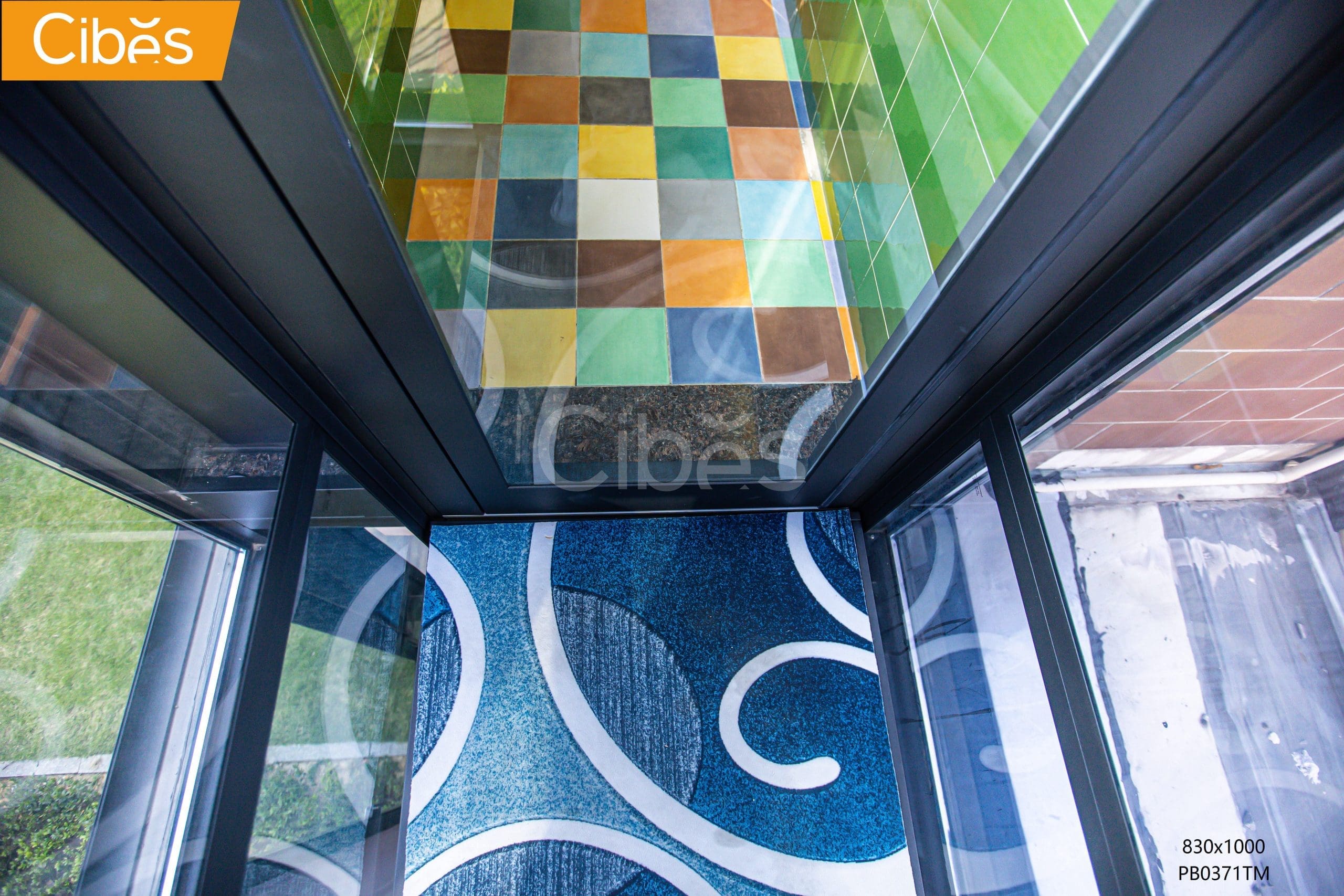

All Glass Shaft, All Steel, or Mixed!
The beauty of the Voyager Elegance is its unlimited flexibility. Choose between:
- Full 360-degree glass shaft, for panoramic view
- Full powdercoated steel shaft, for ultimate privacy
- Mix and match, depending on walls, slabs and your own preferences.
See more
Popular Sizes
| Dimension | Platform size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 600x830 | 1020x980 |
| 2 | 900x930 | 1320x1080 |
| 3 | 800x1217 | 1220x1380 |
| 4 | 1000x1367 | 1420x1530 |
| 5 | 1100x1597 | 1520x1760 |
DESIGN
All Doors on Same Side
Openings on 3 Sides
Half-Gate Door on Top
Multiple Combinations

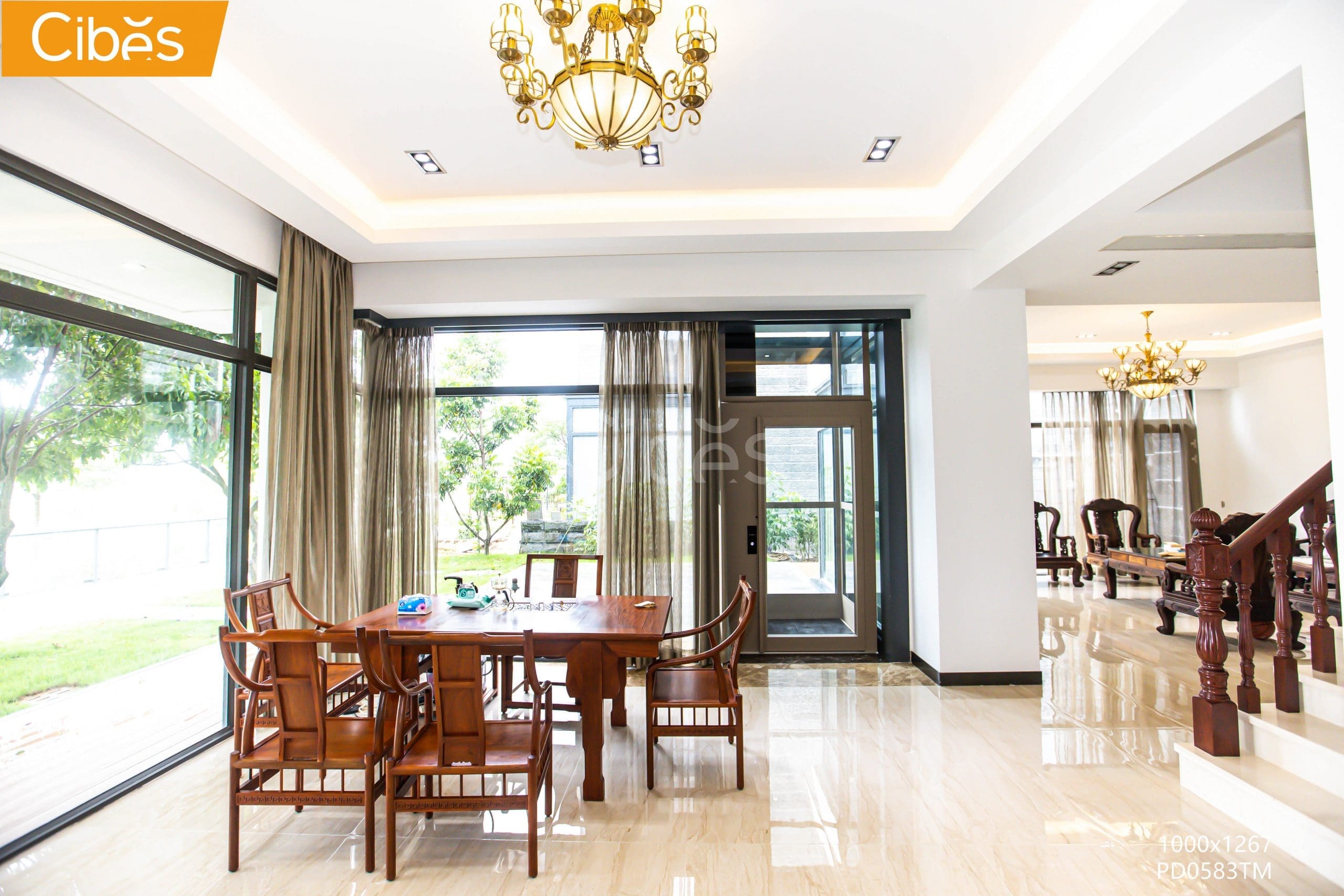

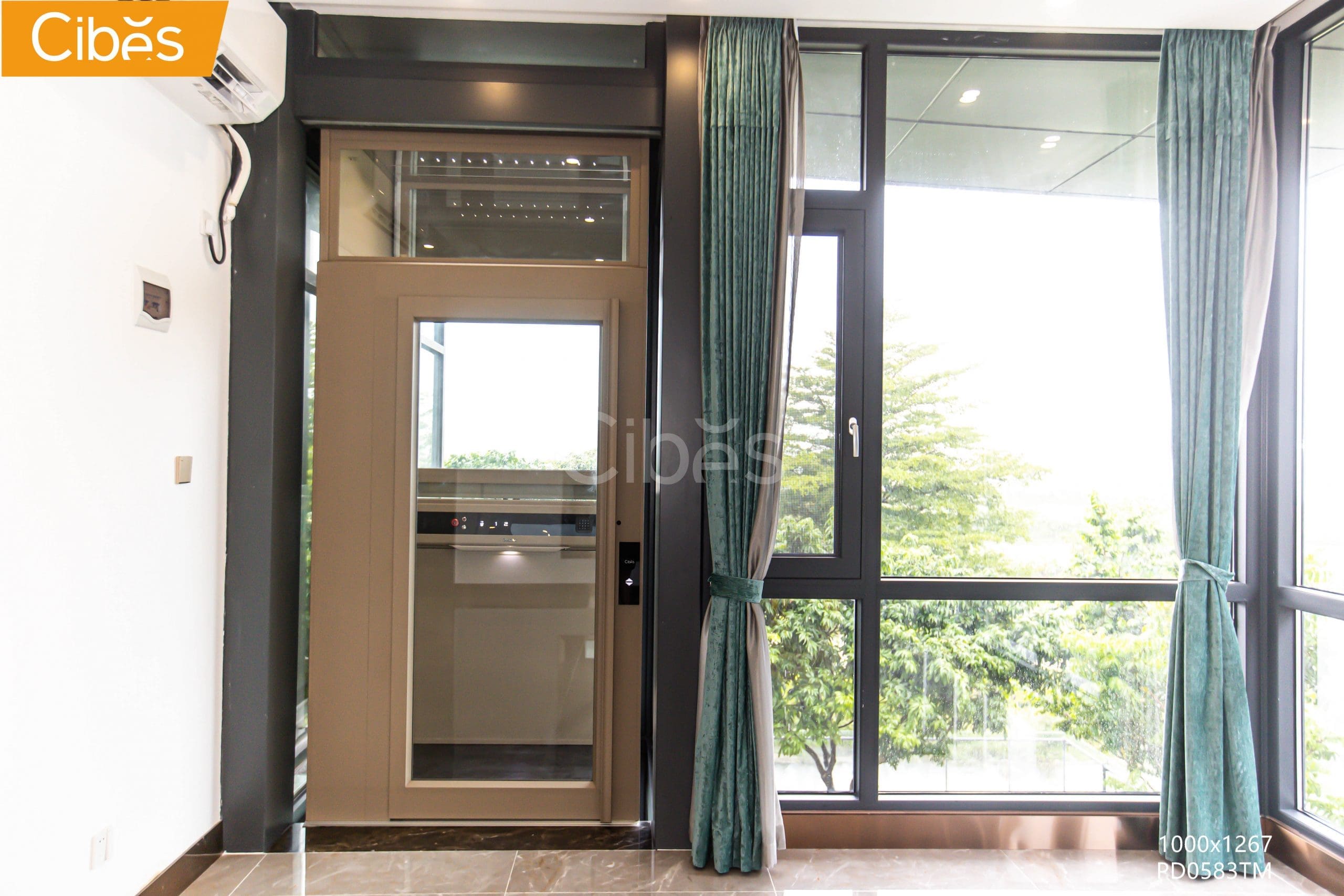

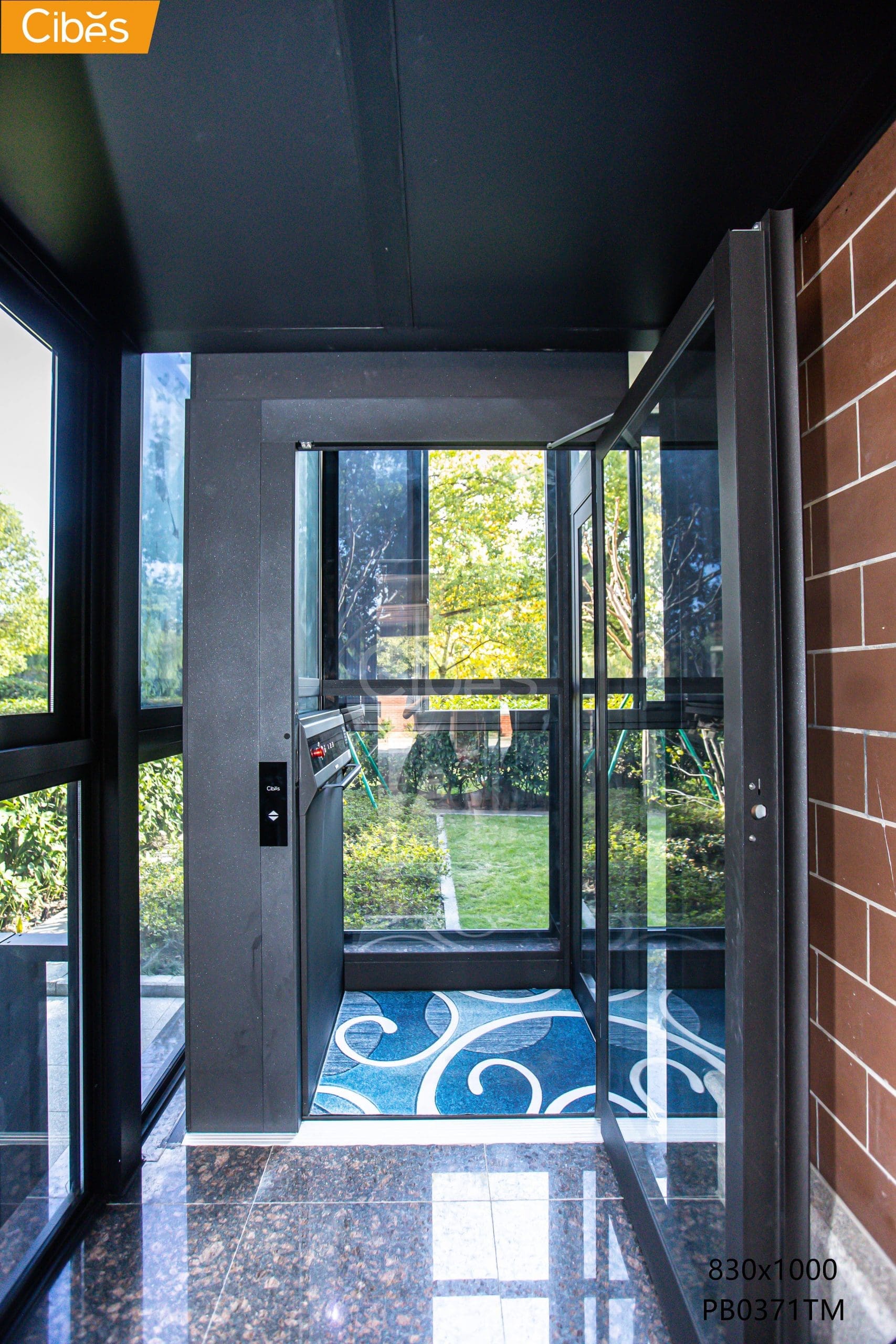

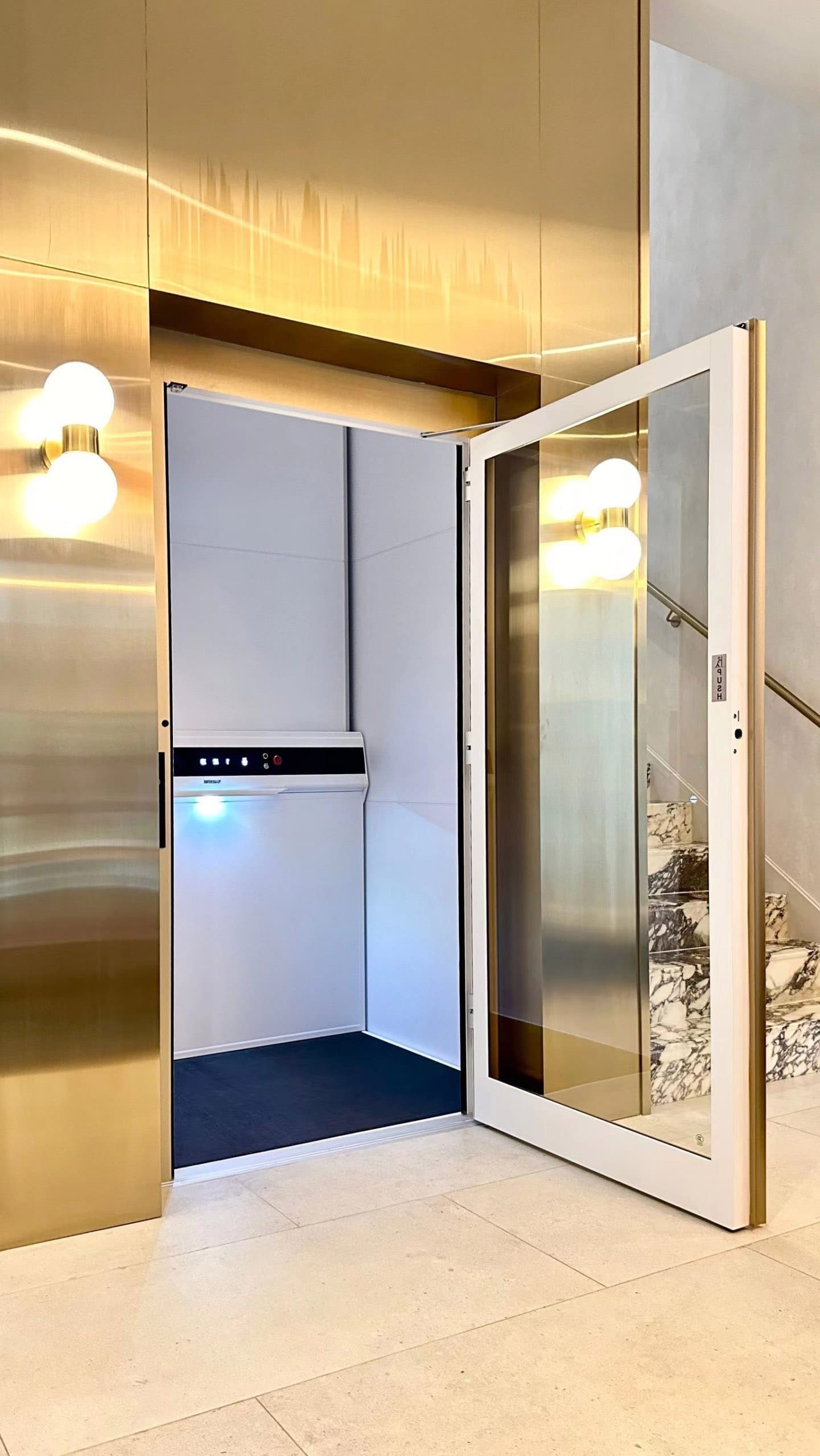

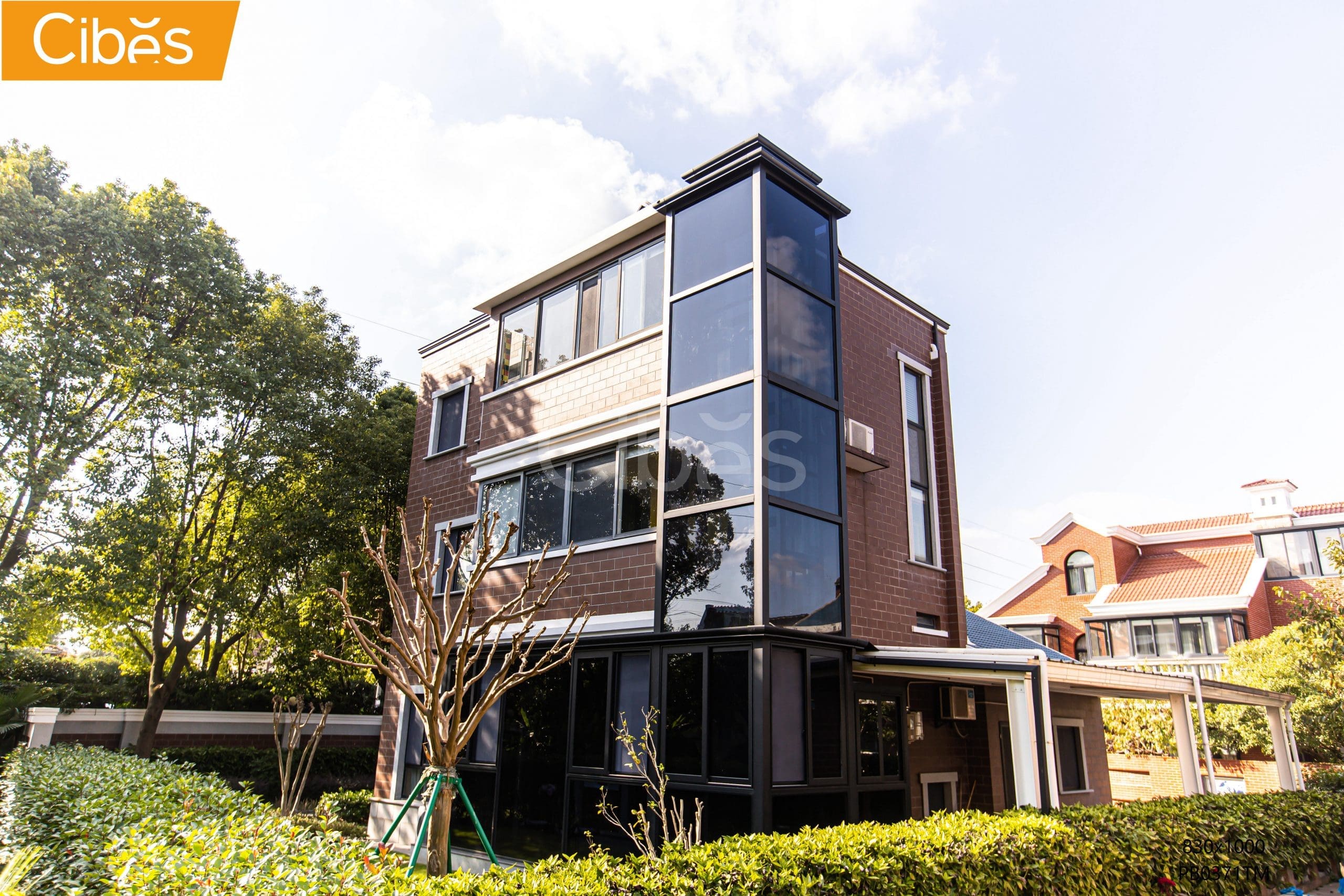

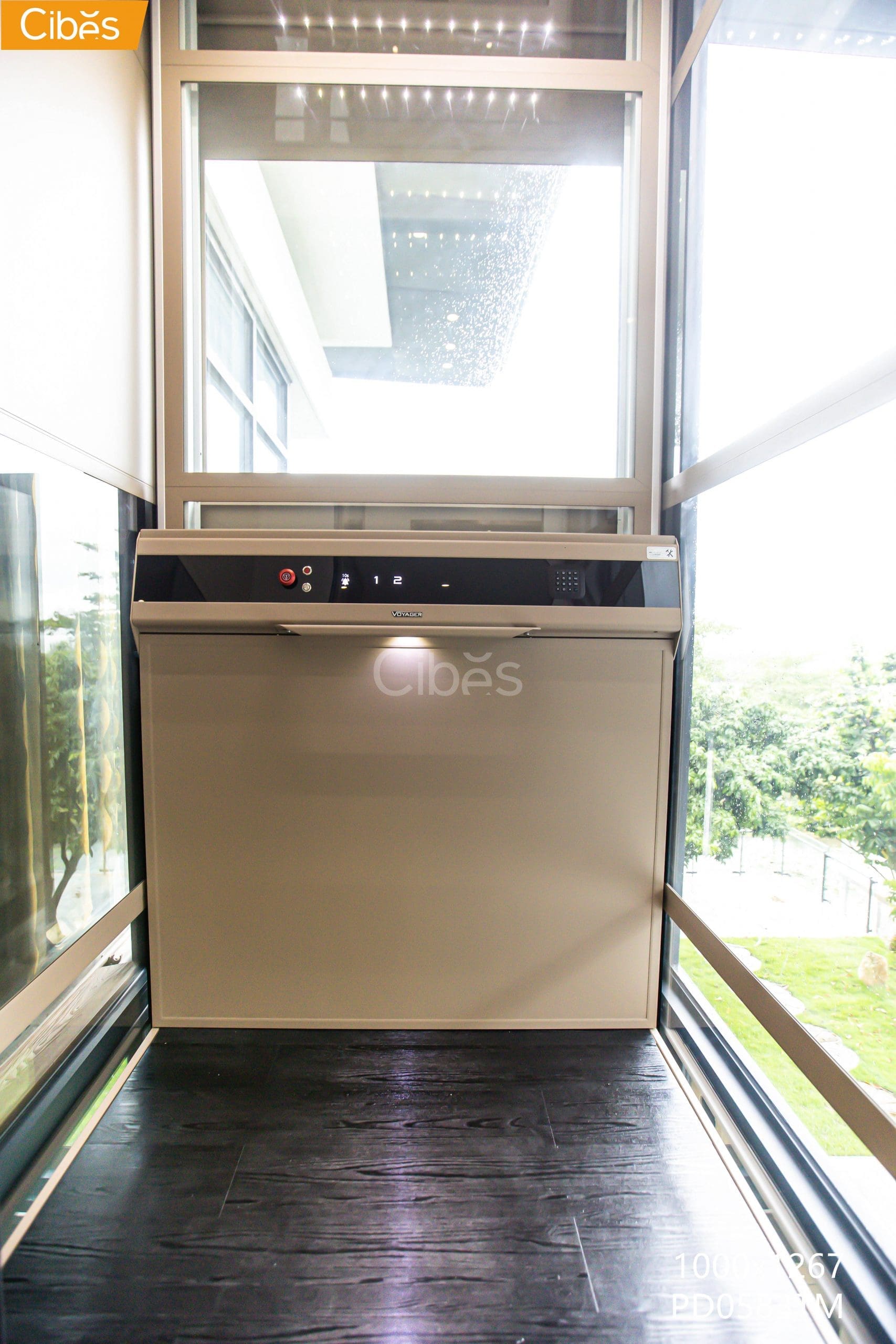

Check these real Voyager Elegance projects!
See all
